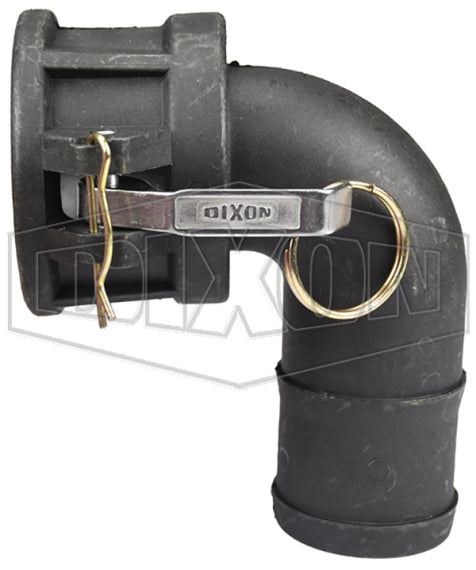

90PPC200 by Dixon Valve | Cam & Groove Coupler | 90° Elbow | Type C | 2" Coupler x 2" Hose Shank | Polypropylene

90PPC200 by Dixon Valve | Cam & Groove Coupler | 90° Elbow | Type C | 2" Coupler x 2" Hose Shank | Polypropylene

Sale price$27.09

Dixon Valve
Cam & Groove | Type C | 90° Elbow | Coupler x Hose Shank

Designed for use with liquids.
Buy More, Save More!
Quantity Price Each
10–39 $25.46
40–79 $23.03
80+ $21.67
Discounts applied in cart/checkout.

Dixon Valve
Cam & Groove | Type C 90° Elbows | Coupler x Hose Shank

For the transfer of fluids and solids, with a safe disconnection.


Construction:
  • Manufactured from glass-filled polypropylene.
  • EPDM gaskets.
  • 304 stainless steel handles and pins.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
  • For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • Not recommended for use with PTFE gaskets.
  • Polypropylene cam and groove should not be mixed with metal fittings.
Glass-Filled PolypropylenePart Number Size Maximum Operating Pressure
90PPC150 1-1/2" 100 PSI
90PPC200 2" 100 PSI

Product Data:

MAWP:

100

Shape:

90 Degree

Cam & Groove Type:

Type C

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
