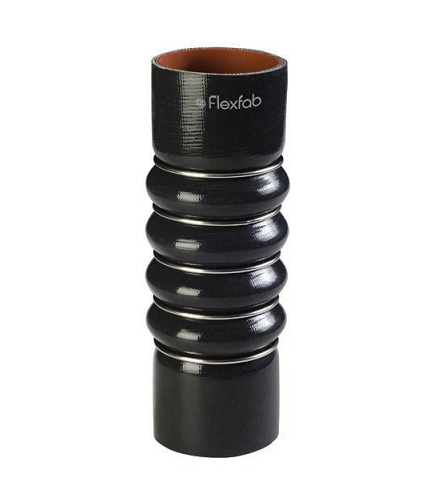

7967 by FlexFab | 3- Ply Coolant Bellow | 2.50" ID | 2.82" OD | Black | 8.5" Overall Length

7967 by FlexFab | 3- Ply Coolant Bellow | 2.50" ID | 2.82" OD | Black | 8.5" Overall Length

Sale price$75.66

Flexfab Industrial Hose - Specialty Hoses
Buy More, Save More!
Quantity Price Each
10–39 $71.12
40–79 $64.31
80+ $56.75
Discounts applied in cart/checkout.

Product Data:

Color(s):
  • Black
Internal Diameter:
  • 2.50in
Outer Diameter:
  • 2.82in
Overview:

        A. 7730-0001: Coolant Sleeve
        • Specially designed coolant hose for unique applications. Sales should be consulted before use in new applications as pressure ratings are very specific.
        • Hose can also be used for a cold side charge-air-cooler application as well
        • Temperature range is -65°F (-54°C) to +350°F (+177°C)
        • Maximum operating pressure is 30 PSI
        • 4-ply polyester reinforced hose
        B. 7967: Coolant Bellows
        • Once installed, the hose can handle up to 1.00" of lateral movement in the application
        • Temperature range is -65°F (-54°C) to +350°F (+177°C)
        • Meets or exceeds the operating requirements of SAE J20 R1 Class A
        • Maximum operating pressure is 50 PSI
        • 3-ply polyester reinforced hose
        C. 7965: Coolant Elbow
        • Used for a 90° coolant connection between pipes
        • Tighter bend radius than most other 90° elbows
        • Temperature range is -65°F (-54°C) to +350°F (+177°C)
        • Meets or exceeds the operating requirements of SAE J20 R1 Class A
        • Maximum operating pressure is 50 PSI
        • 4-ply polyester reinforced hose
        D. 7902: Charge Air 45° Elbow
        • Used for a 45° hot side charge air connection between pipes
        • Temperature range is -65°F (-54°C) to +450°F (+232°C)
        • Maximum operating pressure is 55 PSI
        • 6-ply meta-aramid reinforced hose
Part Number Description Inside Diameter Outside Diameter Overall Length Stainless Steel Rings Burst Pressure Weight Clamp
7730-0001 A. Coolant Sleeve 3.00" 3.23" 6.00" No 90 PSI 0.5 lbs FLX2582-0043 FLX2584-0362
7967 B. Coolant Bellow 2.50" 2.82" 8.50" Yes 150 PSI 0.5 lbs FLX2582-0040 FLX2584-0312
7965 C. Coolant Elbow 2.50" 2.92" 10.00" No 150 PSI 0.5 lbs FLX2582-0040 FLX2584-0312
7902 D. Charge Air 45° Elbow 3.50" / 4.00" 4.17" / 4.67" 8.75" No 165 PSI 0.5 lbs FLX2583-0350 FLX2583-0400
*Specifications for reference only. Specific test data available on request.

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
