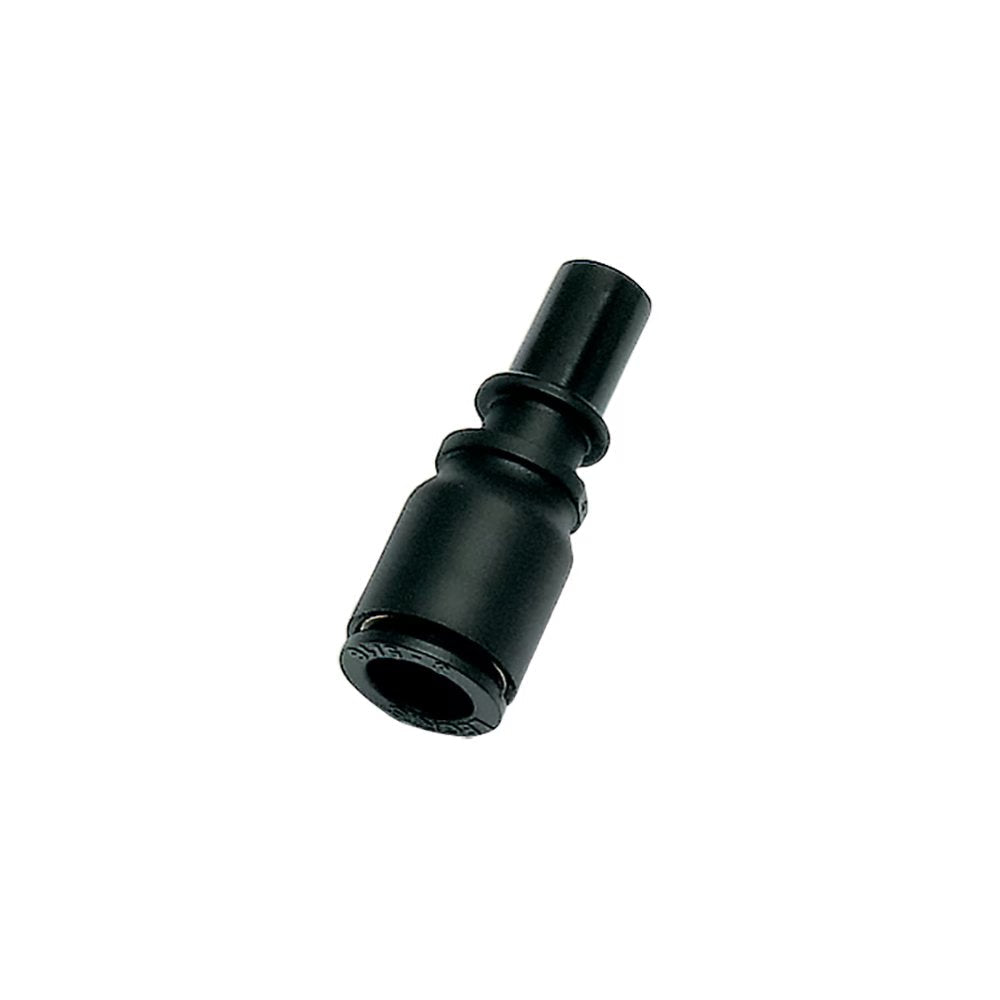

7960 05 06 by Parker | Legris Snap Fitting Probe with Push-in Connection | 5 mm Tube Size x 6 mm Tube Size | 36.5 mm Length | Straight | Polymer | Pack of 10

7960 05 06 by Parker | Legris Snap Fitting Probe with Push-in Connection | 5 mm Tube Size x 6 mm Tube Size | 36.5 mm Length | Straight | Polymer | Pack of 10

Sale price$194.33

Package Quantity: 10 Units

Buy more, save moreDiscounts applied in cart/checkout.
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 0 to 10 bar
  • Working Temperature: -20°C to +80°C
  • Flow Characteristics at 6 bar: DN 5 mm: 1000 NI/min / DN 7 mm: 1900 NI/min
Advantages:
  • Partial venting of systems for energy and time-saving during maintenance operations
  • Protection of individuals by maintaining pressure if necessary
  • Audible click indicates connection
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Technical polymer
  • Plug: Nickel-plated brass
  • Seal: NBR
  • Ring: Technical polymer
Part Number Diameter Nominal (DN) ØD G H H1 Kg
7960 05 06 5 mm 6 mm 13.5 mm 36.5 mm 17.5 mm .007 Kg
7960 05 08 5 mm 6 mm 13.5 mm 37 mm 18 mm .007 Kg

Additional Product Data:

Series:
  • 7960 Series
Shape:

Straight

Ends Configuration:
  • 6mm Push-to-Connect
  • 5mm Tube Stem

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
