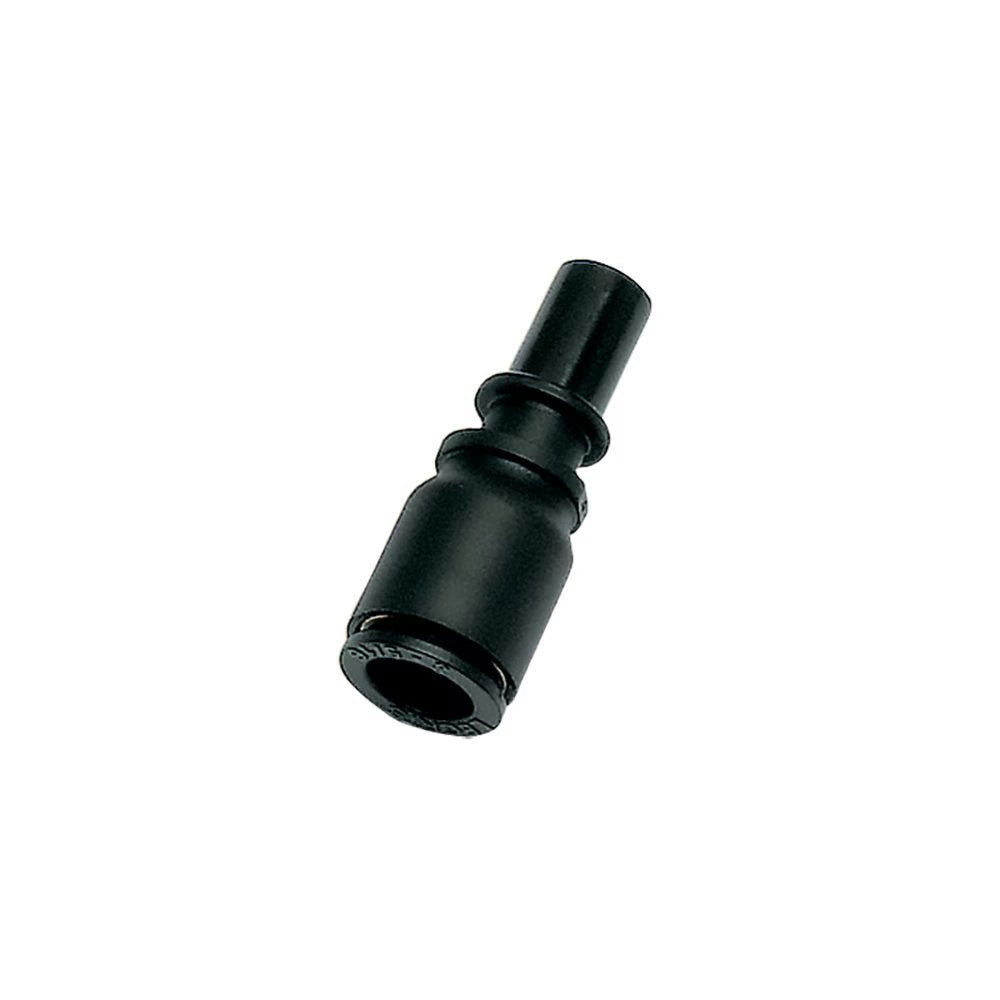

7960 05 08 by Parker | Legris Snap Fitting Probe with Push-in Connection | 5 mm Tube Size x 6 mm Tube Size | 37 mm Length | Straight | Polymer | Pack of 10

7960 05 08 by Parker | Legris Snap Fitting Probe with Push-in Connection | 5 mm Tube Size x 6 mm Tube Size | 37 mm Length | Straight | Polymer | Pack of 10

Sale price$212.01

by Parker Hannifin
Snap Fitting:7960 Straight Probe, Push-In Connection

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–29 $199.29
30–59 $180.21
60+ $159.01
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7960 Series
Shape:

Straight

Ends Configuration:
  • 6mm Push-to-Connect
  • 5mm Tube Stem
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 0 to 10 bar
  • Working Temperature: -20°C to +80°C
  • Flow Characteristics at 6 bar: DN 5 mm: 1000 NI/min / DN 7 mm: 1900 NI/min
Advantages:
  • Partial venting of systems for energy and time-saving during maintenance operations
  • Protection of individuals by maintaining pressure if necessary
  • Audible click indicates connection
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Technical polymer
  • Plug: Nickel-plated brass
  • Seal: NBR
  • Ring: Technical polymer
Part Number Diameter Nominal (DN) ØD G H H1 Kg
7960 05 06 5 mm 6 mm 13.5 mm 36.5 mm 17.5 mm .007 Kg
7960 05 08 5 mm 6 mm 13.5 mm 37 mm 18 mm .007 Kg
