7818-F5 by Alemite | Pump Accessory | Pump Hoists | Bridge Hoist | 200 PSI | use with 7785-A5, 7786-A5, 7889-C Pumps

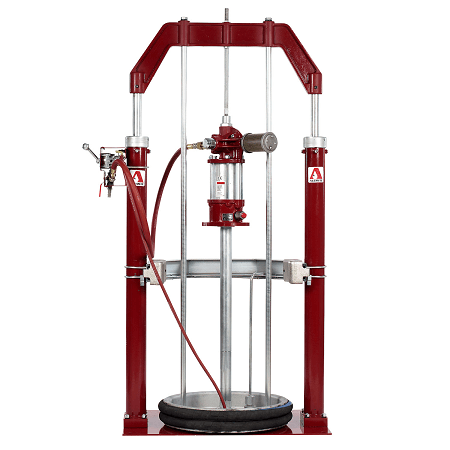

Alemite Pump Accessory - Pump Hoists - Bridge Hoist
| Buy More, Save More! | |
| Quantity | Price Each |
| 3–5 | $26,635.90 |
| 6+ | $25,502.45 |
Discounts applied in cart/checkout.
| Note: | |||
|---|---|---|---|
|
| Part Number | Description | Included Items |
Comments | Additional Comments |
Weight | Used With Pump | |
|---|---|---|---|---|---|---|---|
| 7818-F5 | Bridge Hoist | Guide rods, drum retaining mechanisms, vacuum break, pump air hose assemblies and follower (327690) |
Dimensions: 69 1/4" H (lowered) x 42 1/2" W x 27 3/16" D (107" H raised) Air inlet: 3/4" NPTF(f) Maximum pressure: 200 psi |
Pump Model 7785-A5 7786-A5 7886-A5 |
Adapter Required: 327247 327247 330976 |
370 Lb. | 7785-A5 7786-A5 7889-C |
| 2741-4 | Single Post Pump Hoist |
Hoist, Cover assembly | Height: 62 1/8" (lowered), 98 5/8" (raised) Air inlet: 1/4" NPTF (f) Maximum pressure: 150 psi Recommended Accessory: Adapter plate (322593) adapts cover assembly to bung mounted pumps |
Alemite Industrial Pumps mount directly to the cover assembly | 75 Lb. | 7784-A4 7785-A5 7786-A5 7795-A5 |
|
| 2742-4 | Single Post Pump Hoist |
Hoist, Bracket assembly | Height: 62 1/8" (lowered), 98 5/8" (raised) Air inlet: 1/4" NPTF (f) Maximum pressure: 150 psi Recommended Accessory: Follower plate (327242) for Class III, IV, and V materials (400 Lb.) |
Alemite Industrial Pumps mount directly to the bracket assembly | 75 Lb. | 7784-A4 7785-A5 7785-B5 7786-A5 7786-C 7795-A5 7795-B5 |
|
Product Data:
