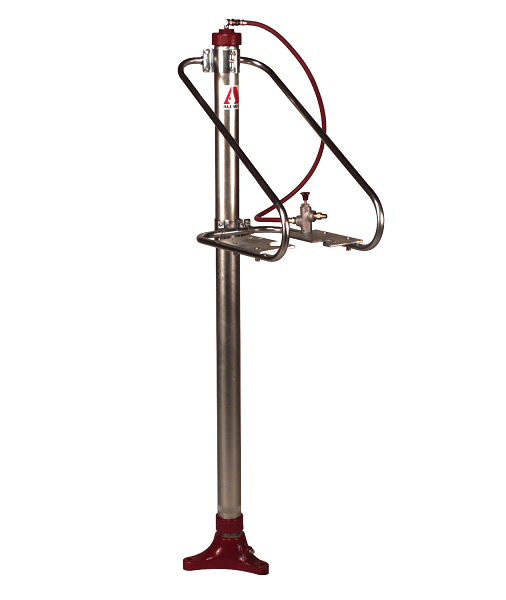

2742-4 by Alemite | Pump Accessory | Pump Hoists | Single Post Pump Hoist | 150 PSI | use with 7784-A4, 7785-A5, 7785-B5, 7786-A5, 7786-C, 7795-A5, 7795-B5 Pumps
Alemite Pump Accessory - Pump Hoists - Bridge Hoist
Product Data:
| Note: | |||
|---|---|---|---|
|
| Part Number | Description | Included Items |
Comments | Additional Comments |
Weight | Used With Pump | |
|---|---|---|---|---|---|---|---|
| 7818-F5 | Bridge Hoist | Guide rods, drum retaining mechanisms, vacuum break, pump air hose assemblies and follower (327690) |
Dimensions: 69 1/4" H (lowered) x 42 1/2" W x 27 3/16" D (107" H raised) Air inlet: 3/4" NPTF(f) Maximum pressure: 200 psi |
Pump Model 7785-A5 7786-A5 7886-A5 |
Adapter Required: 327247 327247 330976 |
370 Lb. | 7785-A5 7786-A5 7889-C |
| 2741-4 | Single Post Pump Hoist |
Hoist, Cover assembly | Height: 62 1/8" (lowered), 98 5/8" (raised) Air inlet: 1/4" NPTF (f) Maximum pressure: 150 psi Recommended Accessory: Adapter plate (322593) adapts cover assembly to bung mounted pumps |
Alemite Industrial Pumps mount directly to the cover assembly | 75 Lb. | 7784-A4 7785-A5 7786-A5 7795-A5 |
|
| 2742-4 | Single Post Pump Hoist |
Hoist, Bracket assembly | Height: 62 1/8" (lowered), 98 5/8" (raised) Air inlet: 1/4" NPTF (f) Maximum pressure: 150 psi Recommended Accessory: Follower plate (327242) for Class III, IV, and V materials (400 Lb.) |
Alemite Industrial Pumps mount directly to the bracket assembly | 75 Lb. | 7784-A4 7785-A5 7785-B5 7786-A5 7786-C 7795-A5 7795-B5 |
|
