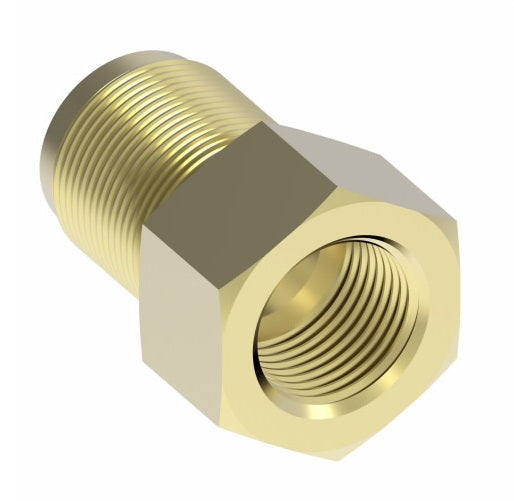

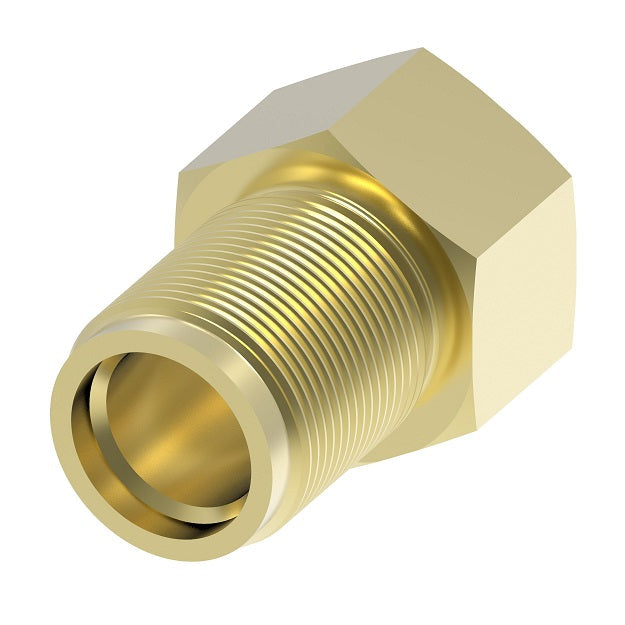

7818 by Danfoss | Hydraulic Brake Dual Master Cylinder Adapter | 1/4" Inverted Male x 3/16" Inverted Female | Brass
Minimum Order Quantity: 5 Units
Aeroquip® by Danfoss
Hydraulic Brake Dual Master Cylinder Adapter - Straight
Adapters can be used to adapt standard steel brake lines to the different size ports used in dual master cylinders.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $6.48 |
| 40–79 | $5.86 |
| 80+ | $5.17 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Note: | |||
|---|---|---|---|
|
| Brass Part Number |
Inverted Male Thread | Inverted Female Thread |
|---|---|---|
| 7911 | 3/16" (9/16-18) | 3/16" |
| 7913 | 3/16" (9/16-18) | 3/16" (1/2-20) |
| 7910 | 3/16" (9/16-20) | 3/16" |
| 7828 | 3/16" | 1/4" |
| 7818 | 1/4" | 3/16" |
| 7732* | 7/16-20 | 1/4" |
| 7908 | 1/4" (9/16-18) | 1/4" |
| 7917 | 1/4" | 5/16" ** |
| 7817* | 5/16" | 3/16" |
| 7909 | 5/16" | 3/16" |
| 7912 | 5/16" | 3/16" (9/16-18) |
| 7727* | 5/16" | 1/4" |
| 7829 | 5/16" | 1/4" |
| 1074* | 5/16" | 5/16" |
| 7771 | 3/8" NPTF | 5/16" |
** Seat may be used for 3/16", 1/4", 5/16" Tube Connection with 1/2-20 Thread.
* Seals On Hex Face (E)
