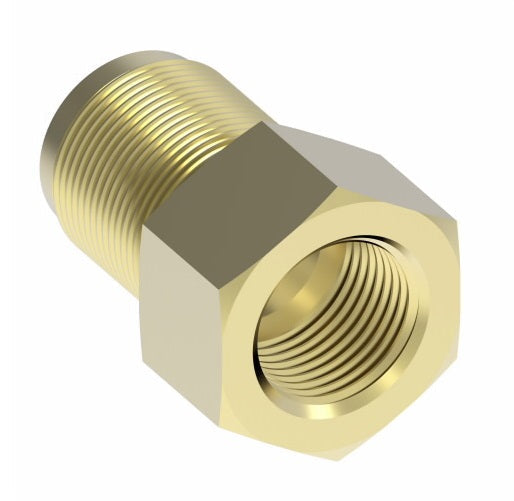

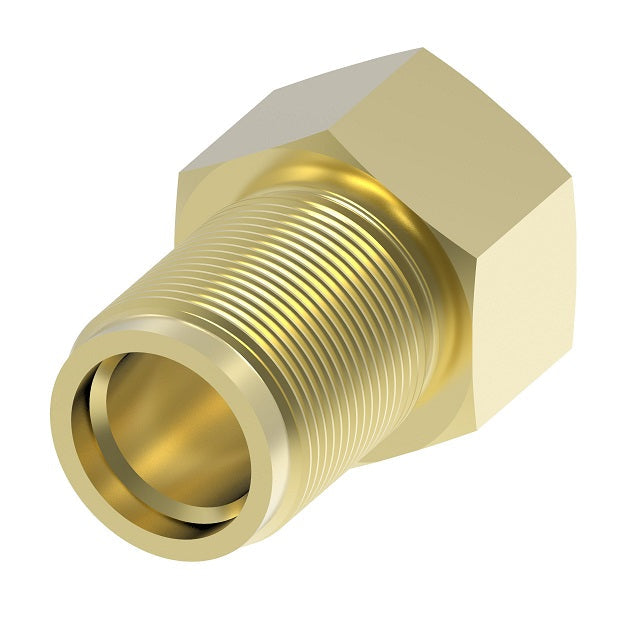

7817 by Danfoss | Hydraulic Brake Dual Master Cylinder Adapter | 5/16" Inverted Male x 3/16" Inverted Female | Brass
7817 by Danfoss | Hydraulic Brake Dual Master Cylinder Adapter | 5/16" Inverted Male x 3/16" Inverted Female | Brass
7817 by Danfoss | Hydraulic Brake Dual Master Cylinder Adapter | 5/16" Inverted Male x 3/16" Inverted Female | Brass

7817 by Danfoss | Hydraulic Brake Dual Master Cylinder Adapter | 5/16" Inverted Male x 3/16" Inverted Female | Brass

Sale price$10.19
In stock
Buy more, save moreDiscounts applied in cart/checkout.
Note:
  • The tube O.D. is the outside diameter of the steel brake line. Thread size can be determined by measuring with a U.S. or Metric screw pitch gauge.
Brass
Part Number 		Inverted Male Thread Inverted Female Thread
7911 3/16" (9/16-18) 3/16"
7913 3/16" (9/16-18) 3/16" (1/2-20)
7910 3/16" (9/16-20) 3/16"
7828 3/16" 1/4"
7818 1/4" 3/16"
7732* 7/16-20 1/4"
7908 1/4" (9/16-18) 1/4"
7917 1/4" 5/16" **
7817* 5/16" 3/16"
7909 5/16" 3/16"
7912 5/16" 3/16" (9/16-18)
7727* 5/16" 1/4"
7829 5/16" 1/4"
1074* 5/16" 5/16"
7771 3/8" NPTF 5/16"

** Seat may be used for 3/16", 1/4", 5/16" Tube Connection with 1/2-20 Thread.
* Seals On Hex Face (E)

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 5/16in Male Inverted Flare
  • 3/16in Female Inverted Flare
Material(s):
  • Brass

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
