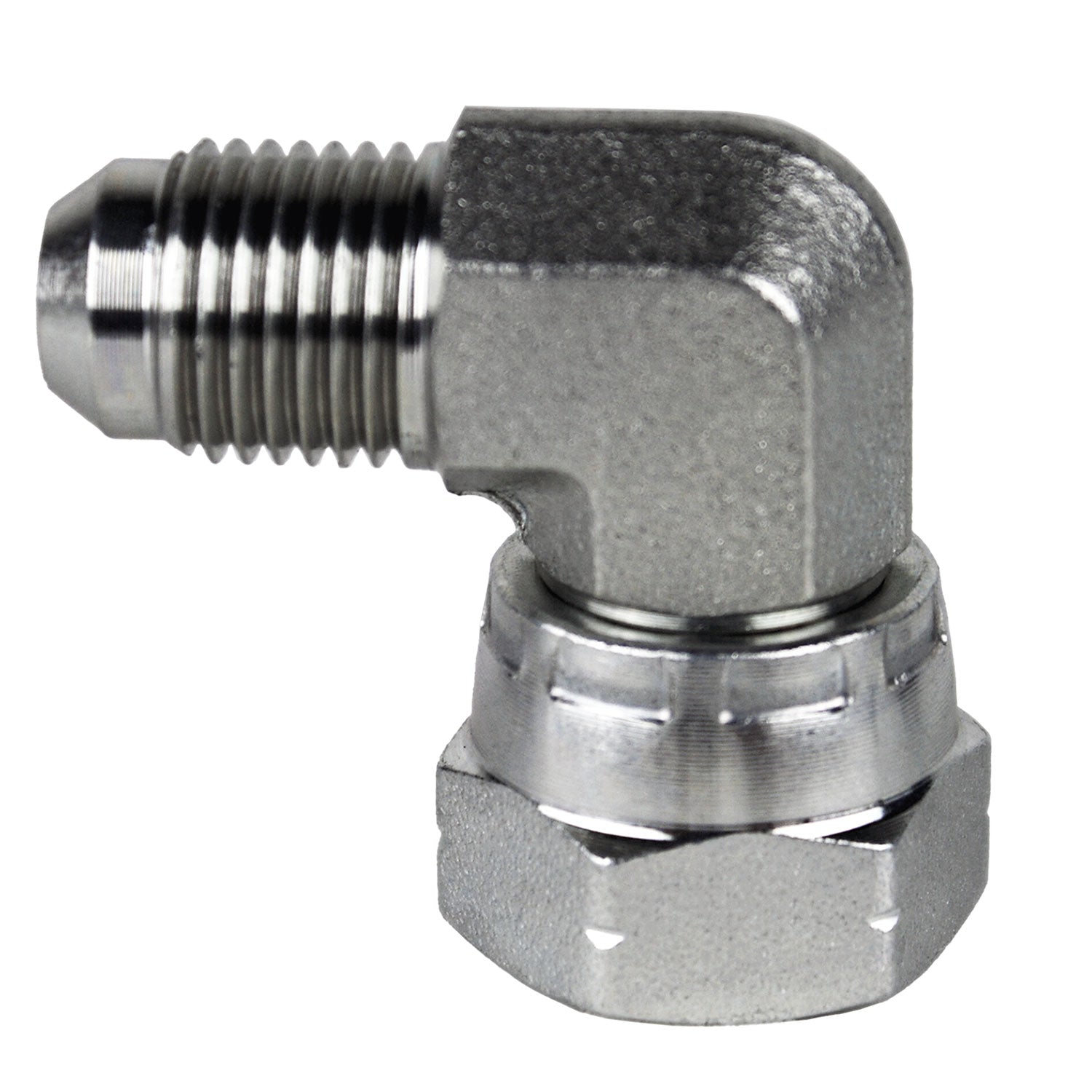

7204-04-04 by Midland | Hydraulic Adapter | 90° Elbow | 1/4" Male JIC x 1/4" Female BSPP Swivel | Steel
Minimum Order Quantity: 5 Units
Midland Industries
Hydraulic Adapters: Male JIC to Female BSPP Swivel - 90° Elbow - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $5.36 |
| 40–79 | $4.85 |
| 80+ | $4.28 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
| Technical Info: | |||
|---|---|---|---|
 |
||||
|---|---|---|---|---|
| Part Number | Male JIC Tube Size (1) |
Male JIC Tube Thread Size (1) |
Female BSPP Swivel Size (2) |
Female BSPP Swivel Thread Size (2) |
| 7204-04-04 | 1/4" | 7/16-20 | 1/4" | 1/4-19 |
| 7204-06-06 | 3/8" | 9/16-18 | 3/8" | 3/8-19 |
| 7204-08-06 | 1/2" | 3/4-16 | 3/8" | 3/8-19 |
| 7204-08-08 | 1/2" | 3/4-16 | 1/2" | 1/2-14 |
| 7204-12-12 | 3/4" | 1-1/16-12 | 3/4" | 3/4-14 |
| 7204-16-16 | 1" | 1-5/16-12 | 1" | 1-11 |
