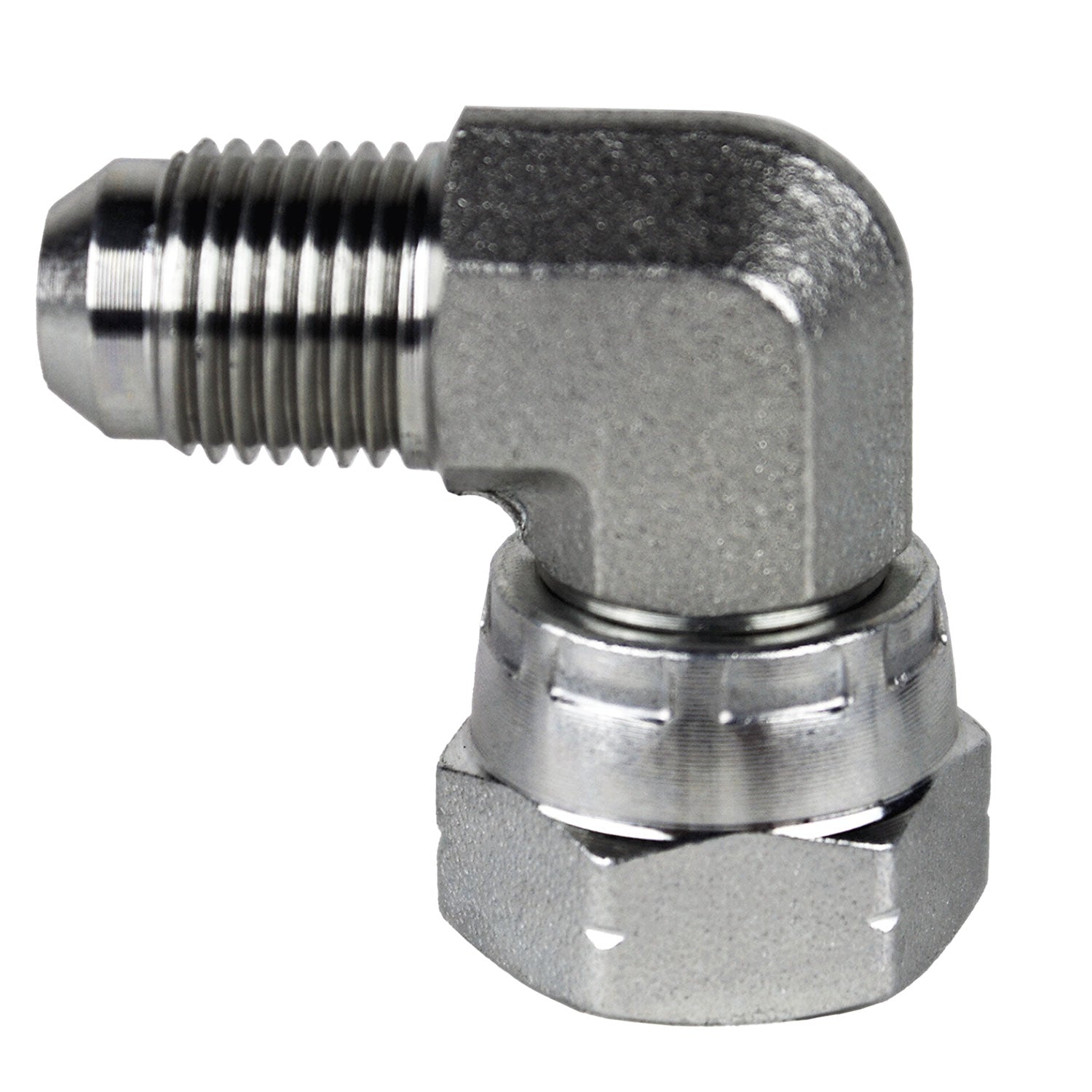

7204-12-12 by Midland | Hydraulic Adapter | 90° Elbow | 3/4" Male JIC x 3/4" Female BSPP Swivel | Steel

7204-12-12 by Midland | Hydraulic Adapter | 90° Elbow | 3/4" Male JIC x 3/4" Female BSPP Swivel | Steel

Sale price$15.72
Buy more, save moreDiscounts applied in cart/checkout.
Technical Info:
Part Number Male JIC Tube
Size
(1)		 Male JIC Tube
Thread
Size
(1)		 Female BSPP Swivel
Size
(2)		 Female BSPP Swivel
Thread
Size
(2)
7204-04-04 1/4" 7/16-20 1/4" 1/4-19
7204-06-06 3/8" 9/16-18 3/8" 3/8-19
7204-08-06 1/2" 3/4-16 3/8" 3/8-19
7204-12-12 3/4" 1-1/16-12 3/4" 3/4-14
7204-16-16 1" 1-5/16-12 1" 1-11

Additional Product Data:

Shape:

90 Degree

Ends Configuration:
  • 3/4in Male JIC
  • 3/4in Female BSPP
Material(s):
  • Steel

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
