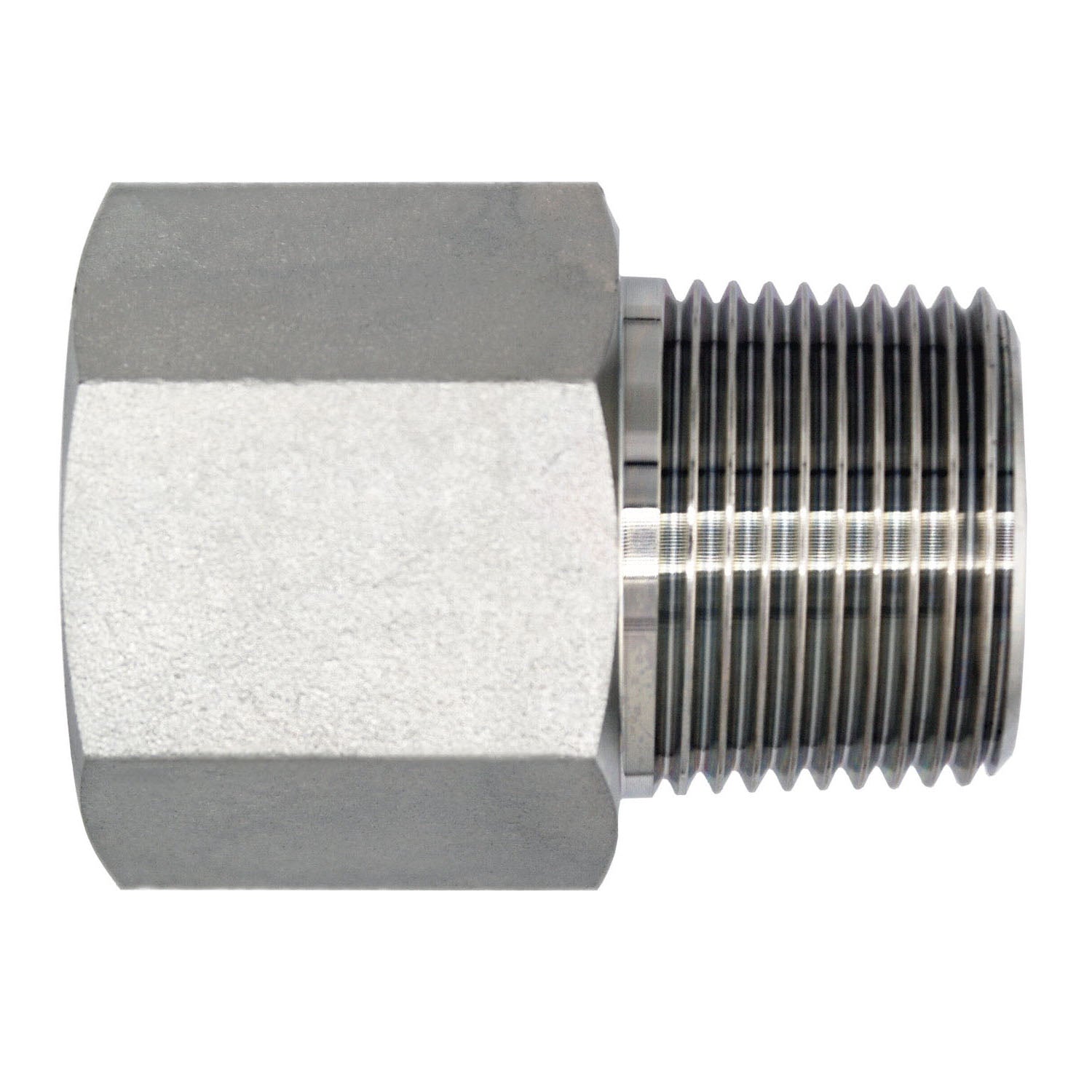

704088 by Midland | Hydraulic Adapter | 1/2" Female NPT x 1/2" Male BSPT | Steel
Minimum Order Quantity: 5 Units
Midland Industries
Hydraulic Adapters: Female NPT x Male BSPT - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $5.69 |
| 40–79 | $5.14 |
| 80+ | $4.54 |
Discounts applied in cart/checkout.
Product Data:
Ends Configuration:
Material(s):
| Technical Info: | |||
|---|---|---|---|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Female Pipe Size (1) |
Female Pipe Thread (1) |
Male BSPT Size (2) |
Male BSPT Thread (2) |
||
| 7040-04-04 | 1/4" | 1/4-18 | 1/4" | 1/4-19 | ||
| 7040-04-06 | 1/4" | 1/4-18 | 3/8" | 3/8-19 | ||
| 7040-04-08 | 1/4" | 1/4-18 | 1/2" | 1/2-14 | ||
| 7040-04-16 | 1/4" | 1/4-18 | 1" | 1-11 | ||
| 704066 | 3/8" | 3/8-18 | 3/8" | 3/8-19 | ||
| 7040-06-12 | 3/8" | 3/8-18 | 3/4" | 3/4-14 | ||
| 704088 | 1/2" | 1/2-14 | 1/2" | 1/2-14 | ||
| 7040-08-12 | 1/2" | 1/2-14 | 3/4" | 3/4-14 | ||
| 7040-12-12 | 3/4" | 3/4-14 | 3/4" | 3/4-14 | ||
| 7040-12-16 | 3/4" | 3/4-14 | 1" | 1-11 | ||
| 7040-16-16 | 1" | 1-11-1/2 | 1" | 1-11 | ||
| 7040-16-24 | 1" | 1-11-1/2 | 1-1/2" | 1-1/2-11 | ||
