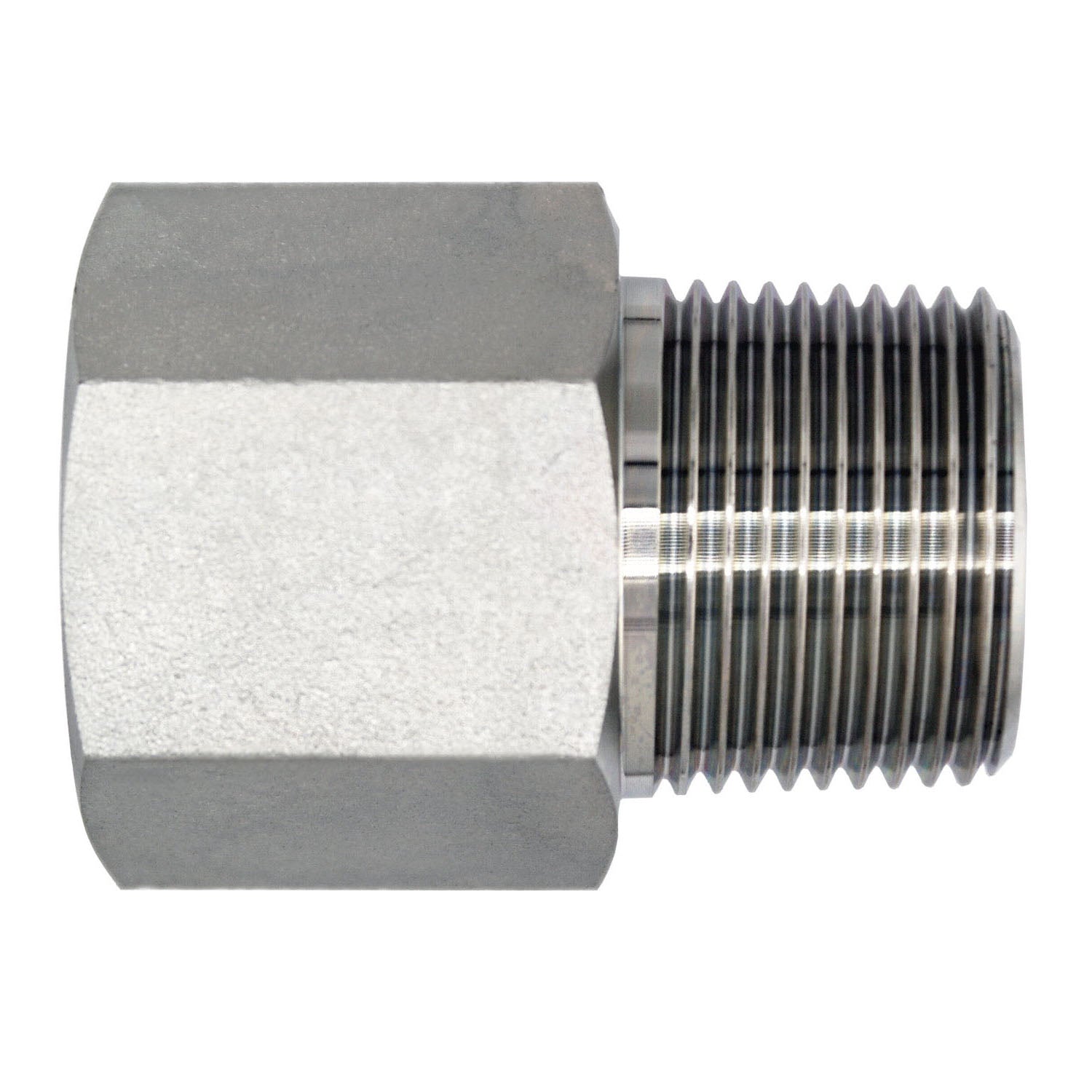

7040-16-16 by Midland | Hydraulic Adapter | 1" Female NPT x 1" Male BSPT | Steel
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Female Pipe Size (1) |
Female Pipe Thread (1) |
Male BSPT Size (2) |
Male BSPT Thread (2) |
||
| 7040-04-04 | 1/4" | 1/4-18 | 1/4" | 1/4-19 | ||
| 7040-04-06 | 1/4" | 1/4-18 | 3/8" | 3/8-19 | ||
| 7040-04-08 | 1/4" | 1/4-18 | 1/2" | 1/2-14 | ||
| 7040-04-16 | 1/4" | 1/4-18 | 1" | 1-11 | ||
| 704066 | 3/8" | 3/8-18 | 3/8" | 3/8-19 | ||
| 7040-06-12 | 3/8" | 3/8-18 | 3/4" | 3/4-14 | ||
| 704088 | 1/2" | 1/2-14 | 1/2" | 1/2-14 | ||
| 7040-08-12 | 1/2" | 1/2-14 | 3/4" | 3/4-14 | ||
| 7040-12-12 | 3/4" | 3/4-14 | 3/4" | 3/4-14 | ||
| 7040-12-16 | 3/4" | 3/4-14 | 1" | 1-11 | ||
| 7040-16-16 | 1" | 1-11-1/2 | 1" | 1-11 | ||
| 7040-16-24 | 1" | 1-11-1/2 | 1-1/2" | 1-1/2-11 | ||
Additional Product Data:
Ends Configuration:
Material(s):
