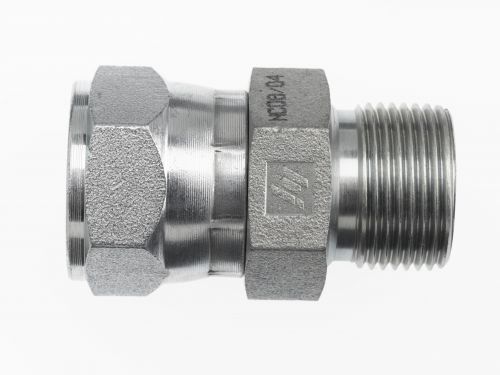

7022-24-24 by Brennan Inc. | -24 Female JIC Swivel x -24 Male BSPP | Straight | Steel

7022-24-24 by Brennan Inc. | -24 Female JIC Swivel x -24 Male BSPP | Straight | Steel

Sale price$85.86

Brennan Inc.
Conversion Adapters: 7022 - Female JIC Swivel x Male BSPP Straight
Buy More, Save More!
Quantity Price Each
5–19 $80.71
20–59 $72.98
60+ $64.40
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/2in Female JIC
  • 1-1/2in Male BSPP
Material(s):
  • Steel
Part Number Material TubeO.D B1JIC 37° B2BSPP B1Drill B2Drill LLength C1Hex C2Hex
7022-16-12 Steel 3/4" 1-5/16-12" 3/4-14" 18.00mm 18.00mm 61.00mm 38.10mm 35.00mm
7022-16-16 Steel 1" 1-5/16-12" 1-11" 21.40mm 21.40mm 64.50mm 38.10mm 41.00mm
7022-20-20 Steel 1-1/4" 1-5/8-12" 1-1/4-11" 27.40mm 30.00mm 63.90mm 50.00mm 50.00mm
7022-24-24 Steel 1-1/2" 1-7/8-12" 1-1/2-11" 33.30mm 33.30mm 71.60mm 57.20mm 55.00mm

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
