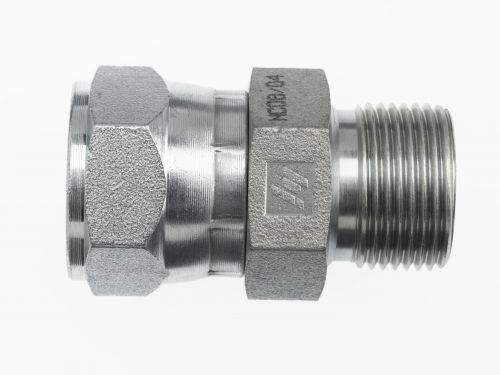

7022-20-20 by Brennan Inc. | -20 Female JIC Swivel x -20 Male BSPP | Straight | Steel

7022-20-20 by Brennan Inc. | -20 Female JIC Swivel x -20 Male BSPP | Straight | Steel

Sale price$37.10

Brennan Inc.
Conversion Adapters: 7022 - Female JIC Swivel x Male BSPP Straight
Buy More, Save More!
Quantity Price Each
10–39 $34.87
40–79 $31.54
80+ $27.83
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/4in Female JIC
  • 1-1/4in Male BSPP
Material(s):
  • Steel
Part Number Material TubeO.D B1JIC 37° B2BSPP B1Drill B2Drill LLength C1Hex C2Hex
7022-16-12 Steel 3/4" 1-5/16-12" 3/4-14" 18.00mm 18.00mm 61.00mm 38.10mm 35.00mm
7022-16-16 Steel 1" 1-5/16-12" 1-11" 21.40mm 21.40mm 64.50mm 38.10mm 41.00mm
7022-20-20 Steel 1-1/4" 1-5/8-12" 1-1/4-11" 27.40mm 30.00mm 63.90mm 50.00mm 50.00mm
7022-24-24 Steel 1-1/2" 1-7/8-12" 1-1/2-11" 33.30mm 33.30mm 71.60mm 57.20mm 55.00mm
