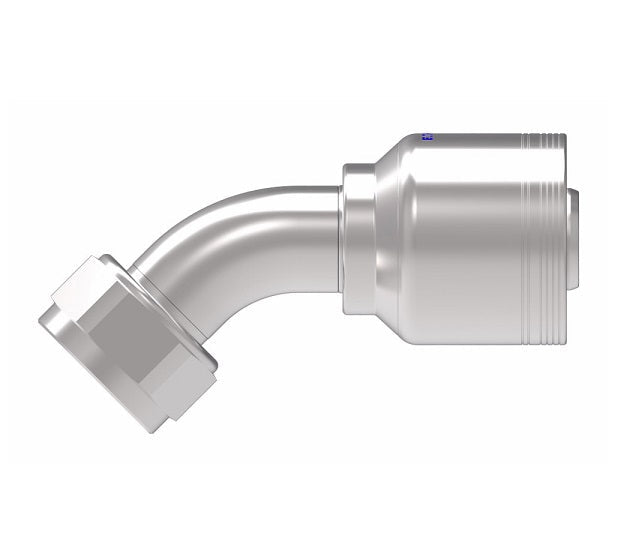

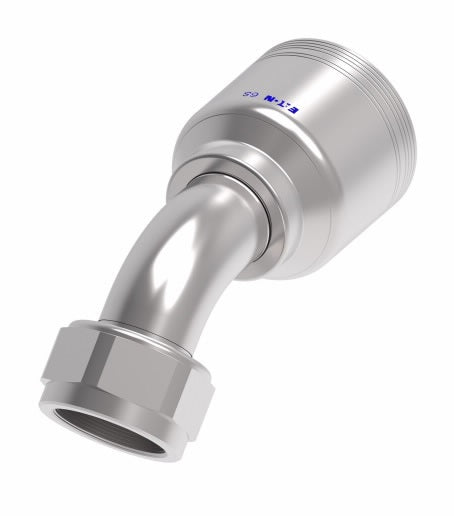

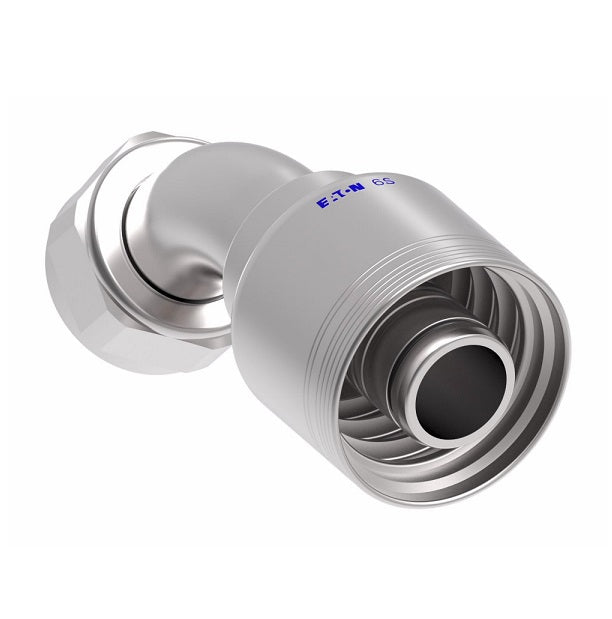

6SA20FJA20 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel 45° Elbow (FJA) Crimp Fitting | -20 Female JIC/37° Swivel x -20 Hose Barb | Steel | Pack of 10
6SA20FJA20 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel 45° Elbow (FJA) Crimp Fitting | -20 Female JIC/37° Swivel x -20 Hose Barb | Steel | Pack of 10
6SA20FJA20 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel 45° Elbow (FJA) Crimp Fitting | -20 Female JIC/37° Swivel x -20 Hose Barb | Steel | Pack of 10

6SA20FJA20 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel 45° Elbow (FJA) Crimp Fitting | -20 Female JIC/37° Swivel x -20 Hose Barb | Steel | Pack of 10

Sale price$1,239.00

Package Quantity: 10 Units

Buy more, save moreDiscounts applied in cart/checkout.
Technical Info:
Note:
  • When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst.
    The 45° and 90° elbow configurations in the -12 size meet a 3.2:1 burst
    The 45° and 90° elbow configurations in the -16 size achieve a 2.8:1 burst
    The 45° and 90° elbow configurations in the -20 size meet a 4:1 burst
    The 45° & 90° elbow configurations in the -24 size meet a 2.4:1 burst.
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash H Hex 1
Dash Size DN Dash Size
6SA20FJA20 -20 31 -20 1-5/8-12 5.37" 3.17" 0.99" 1.26" 2"
6SA24FJA24 -24 38 -24 1-7/8-12 8.35" 5.28" 1.22" 1.69" 2-1/4"

Additional Product Data:

Shape:

45 Degree

Ends Configuration:
  • 1-1/4in Female JIC
  • 1-1/4in Hose Barb
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
