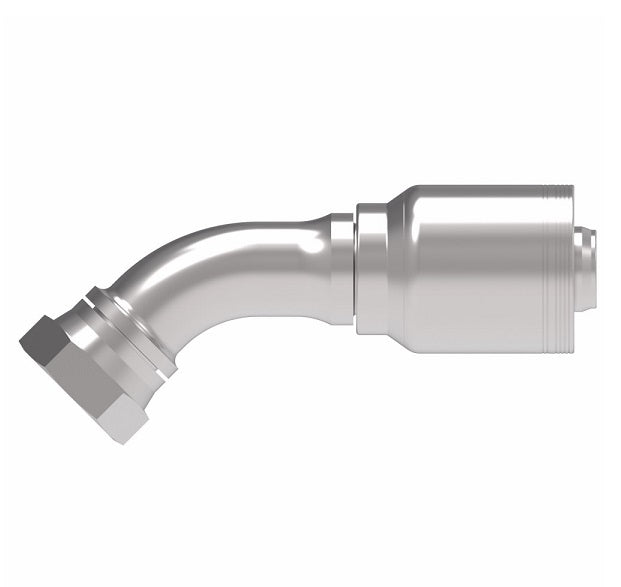

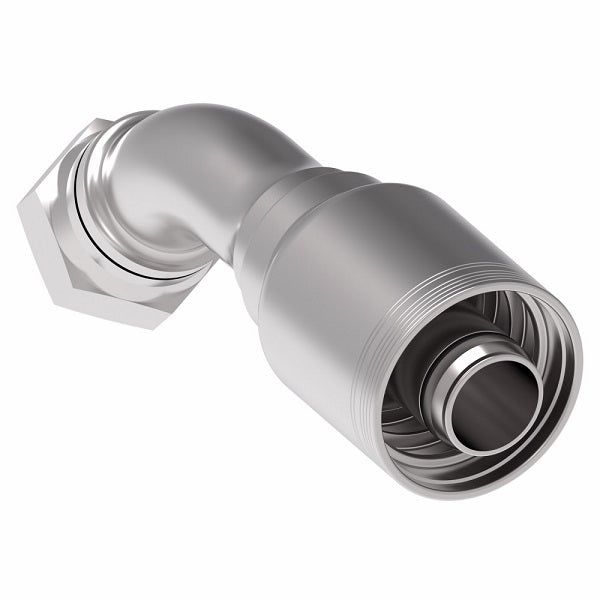

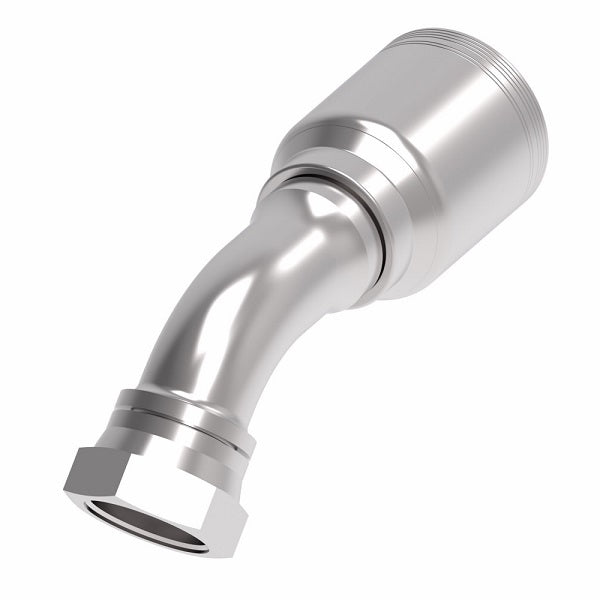

6SA24FJA24 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel 45° Elbow (FJA) Crimp Fitting | -24 Female JIC/37° Swivel x -24 Hose Barb | Steel
6SA24FJA24 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel 45° Elbow (FJA) Crimp Fitting | -24 Female JIC/37° Swivel x -24 Hose Barb | Steel
6SA24FJA24 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel 45° Elbow (FJA) Crimp Fitting | -24 Female JIC/37° Swivel x -24 Hose Barb | Steel

6SA24FJA24 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel 45° Elbow (FJA) Crimp Fitting | -24 Female JIC/37° Swivel x -24 Hose Barb | Steel

Sale price$237.22

Aeroquip® by Danfoss
6 Wire 6S Female JIC/37° Swivel Crimp Fitting (FJA) - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
5–19 $222.99
20–59 $201.64
60+ $177.92
Discounts applied in cart/checkout.

Product Data:

Shape:

45 Degree

Ends Configuration:
  • 1-1/2in Female JIC
  • 1-1/2in Hose Barb
Material(s):
  • Steel
Technical Info:
Note:
  • When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst.
    The 45° and 90° elbow configurations in the -12 size meet a 3.2:1 burst
    The 45° and 90° elbow configurations in the -16 size achieve a 2.8:1 burst
    The 45° and 90° elbow configurations in the -20 size meet a 4:1 burst
    The 45° & 90° elbow configurations in the -24 size meet a 2.4:1 burst.
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash H Hex 1
Dash Size DN Dash Size
6SA20FJA20 -20 31 -20 1-5/8-12 5.37" 3.17" 0.99" 1.26" 2"
6SA24FJA24 -24 38 -24 1-7/8-12 8.35" 5.28" 1.22" 1.69" 2-1/4"
