6GC10-16x16 by Couplamatic | Grip Crimp 6GC Series Coupling | 1" Hose ID x G-1-11 Thread Size | 1" BSPP Size Female Swivel | Straight | Trivalent Zinc Plating

6GC10-16x16 by Couplamatic | Grip Crimp 6GC Series Coupling | 1" Hose ID x G-1-11 Thread Size | 1" BSPP Size Female Swivel | Straight | Trivalent Zinc Plating

Sale price$40.27

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - BSPP - British Standard Parallel 60° Cone - Female Swivel
Buy More, Save More!
Quantity Price Each
10–39 $37.85
40–79 $34.23
80+ $30.20
Discounts applied in cart/checkout.
Description:
  • G. as part of thread size is ISO designation for parallel thread.
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

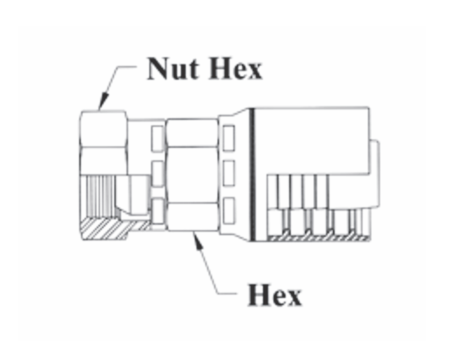

    Part Number Hose ID BSPP Size Thread Size Hex Size Nut Hex
    6GC10-10x10 5/8" 5/8" G-5/8-14 15/16" 1-3/16"
    6GC10-12x12 3/4" 3/4" G-3/4-14 1-1/8" 1-1/4"
    6GC10-16x16 1" 1" G-1-11 1-3/8" 1-1/2"

    Product Data:

    Series:
    • 6GC Series
    Shape:

    Straight

    Ends Configuration:
    • 1in Female BSPP
    • 1in Hose Barb

    Couplamatic Systems Inc

    In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
