6GC Series — 4SH / R13 / R15 No-Skive
6GC10 Grip Crimp 6GC Series Coupling — BSPP, 60° Cone, Female Swivel, Straight
6GC10 is the BSPP, 60° Cone, Female Swivel, Straight configuration of the Grip Crimp 6GC Series, terminating 4SH, SAE 100R13 and SAE 100R15 six spiral hose.
1
What are the main product features?
- G. as part of thread size is ISO designation for parallel thread.
- The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
- Check crimp O.D. carefully
- Trivalent Zinc Plating
- No skive required — terminates six spiral hose without stripping the cover.
- Six spiral construction — for the highest pressure 4SH, R13 and R15 hose.
2
Which sizes are available?

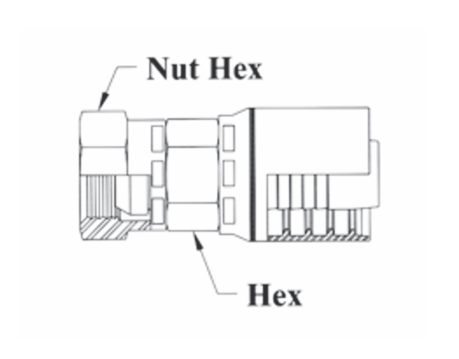

| Part Number | Hose ID | BSPP Size | Thread Size | Hex Size | Nut Hex |
|---|---|---|---|---|---|
| 6GC10-10x10 | 5/8" | 5/8" | G-5/8-14 | 15/16" | 1-3/16" |
| 6GC10-12x12 | 3/4" | 3/4" | G-3/4-14 | 1-1/8" | 1-1/4" |
| 6GC10-16x16 | 1" | 1" | G-1-11 | 1-3/8" | 1-1/2" |
Additional Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
