6GC10-12x12 by Couplamatic | Grip Crimp 6GC Series Coupling | 3/4" Hose ID x G-3/4-14 Thread Size Female 60° Cone Swivel | 3/4" BSPP size | Straight | Trivalent Zinc Plating

6GC10-12x12 by Couplamatic | Grip Crimp 6GC Series Coupling | 3/4" Hose ID x G-3/4-14 Thread Size Female 60° Cone Swivel | 3/4" BSPP size | Straight | Trivalent Zinc Plating

Sale price$35.49

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - BSPP - British Standard Parallel 60° Cone - Female Swivel
Buy More, Save More!
Quantity Price Each
10–39 $33.36
40–79 $30.17
80+ $26.62
Discounts applied in cart/checkout.

Product Data:

Series:
  • 6GC Series
Shape:

Straight

Ends Configuration:
  • 3/4in Female BSPP
  • 3/4in Hose Barb
Description:
  • G. as part of thread size is ISO designation for parallel thread.
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

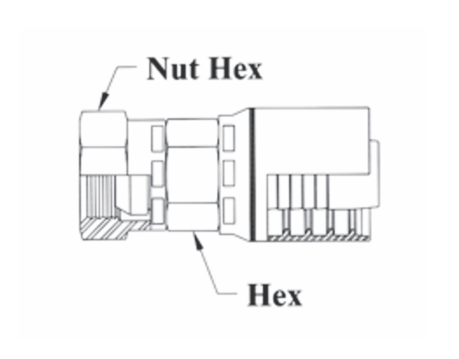

    Part Number Hose ID BSPP Size Thread Size Hex Size Nut Hex
    6GC10-10x10 5/8" 5/8" G-5/8-14 15/16" 1-3/16"
    6GC10-12x12 3/4" 3/4" G-3/4-14 1-1/8" 1-1/4"
    6GC10-16x16 1" 1" G-1-11 1-3/8" 1-1/2"
