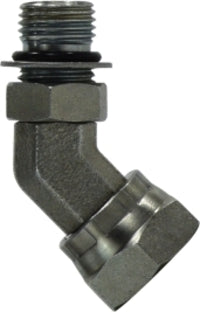

6902NWO2020 by Midland | Hydraulic O-Ring Swivel | 1-1/4 Male O-Ring Boss x 1-1/4" Female NPSM | 45° Elbow | Adapter | Steel
Midland Industries
Hydraulic Adapters: 45° O-Ring To Pipe Swivel - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $26.08 |
| 40–79 | $23.58 |
| 80+ | $20.81 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
| Specifications: | |||
|---|---|---|---|
|
|||
| Technical Info: | |||
| Crossover Series: | |||
|---|---|---|---|
| 6902 | 2067R | 1272 | 9365 |
 |
|||
|---|---|---|---|
| Part Number | Male O-Ring Boss Size |
Male O-Ring Boss Thread (1) |
Female NPSM (2) |
| 6902NWO42 | 1/4" | 7/16-20 | 1/8" |
| 6902NWO44 (6902-NWO-4-4) |
1/4" | 7/16-20 | 1/4" |
| 6902NWO46 (6902-NWO-4-6) |
1/4" | 7/16-20 | 3/8" |
| 6902NWO64 (6902-NWO-6-4) |
3/8" | 9/16-18 | 1/4" |
| 6902NWO66 (6902-NWO-6-6) |
3/8" | 9/16-18 | 3/8" |
| 6902NWO68 (6902-NWO-6-8) |
3/8" | 9/16-18 | 1/2" |
| 6902NWO84 (6902-NWO-8-4) |
1/2" | 3/4-16 | 1/4" |
| 6902NWO86 (6902-NWO-8-6) |
1/2" | 3/4-16 | 3/8" |
| 6902NWO88 (6902-NWO-8-8) |
1/2" | 3/4-16 | 1/2" |
| 6902NWO108 (6902-NWO-10-8) |
5/8" | 7/8-14 | 1/2" |
| 6902NWO1012 | 5/8" | 7/8-14 | 3/4" |
| 6902NWO128 (6902-NWO-12-8) |
3/4" | 1-1/16-12 | 1/2" |
| 6902NWO1212 (6902-NWO-12-12) |
3/4" | 1-1/16-12 | 3/4" |
| 6902NWO1616 (6902-NWO-16-16) |
1" | 1-5/16-12 | 1" |
| 6902NWO2020 | 1-1/4" | 1-5/8-12 | 1-1/4" |
