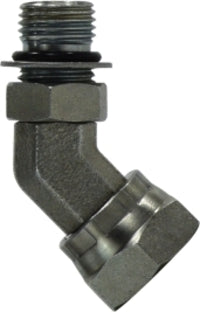

6902NWO46 by Midland | Hydraulic O-Ring Swivel | 7/16-20 Male O-Ring Boss x 3/8" Female NPSM | 45° Elbow | Adapter | Steel
Minimum Order Quantity: 5 Units
Midland Industries
Hydraulic Adapters: 45° O-Ring Swivel Adapter - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $7.90 |
| 40–79 | $7.14 |
| 80+ | $6.30 |
Discounts applied in cart/checkout.
Product Data:
Shape:
["45 Degree"]
Ends Configuration:
Material(s):
Specifications and Approvals:
| Specifications: | |||
|---|---|---|---|
|
|||
| Technical Info: | |||
| Crossover Series: | |||
|---|---|---|---|
| 6902 | 2067R | 1272 | 9365 |
 |
||
|---|---|---|
| Part Number | Male O-Ring Boss (1) |
Female NPSM (2) |
| 6902NWO44 (6902-NWO-4-4) |
7/16-20 | 1/4" |
| 6902NWO46 (6902-NWO-4-6) |
7/16-20 | 3/8" |
| 6902NWO64 (6902-NWO-6-4) |
9/16-18 | 1/4" |
| 6902NWO66 (6902-NWO-6-6) |
9/16-18 | 3/8" |
| 6902NWO68 (6902-NWO-6-8) |
9/16-18 | 1/2" |
| 6902NWO84 (6902-NWO-8-4) |
3/4-16 | 1/4" |
| 6902NWO86 (6902-NWO-8-6) |
3/4-16 | 3/8" |
| 6902NWO88 (6902-NWO-8-8) |
3/4-16 | 1/2" |
| 6902NWO108 (6902-NWO-10-8) |
7/8-14 | 1/2" |
| 6902NWO128 (6902-NWO-12-8) |
1-1/16-12 | 1/2" |
| 6902NWO1212 (6902-NWO-12-12) |
1-1/16-12 | 3/4" |
| 6902NWO1616 (6902-NWO-16-16) |
1-5/16-12 | 1" |
