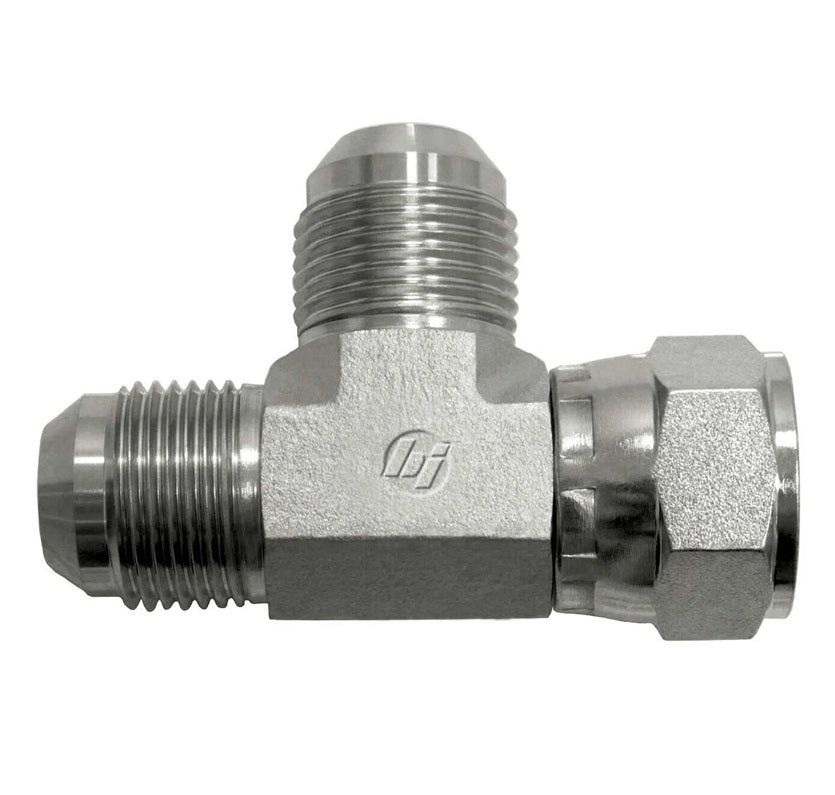

6602-20-20-20-SS by Brennan Inc. | -20 Male JIC x -20 Female JIC Swivel x -20 Male JIC | Tee | Stainless Steel
| Quantity | Price Each |
| 5–14 | $288.21 |
| 15–29 | $273.04 |
| 30+ | $242.70 |
Discounts applied at checkout.
Brennan Inc.
Tube Fittings & Adapters: 6602 - Male JIC x Female JIC Swivel x Male JIC Tee
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | A1 Tube O.D. | A2 Tube O.D. | A1 SAE37° | A2 SAE37° | A3 SAE37° | A1 Drill | A2 Drill | A3 Drill | M Length | M5 Length | M6 Length | M2 Length | C Hex | Y Flats |
| 6602-03-03-03-FG | Forged Steel | 3/16" | 3/16" | 3/8-24" | 3/8-24" | 3/8-24" | 0.125" | 0.125" | 0.125" | 0.830" | 0.670" | 1.000" | 0.83" | 0.500" | 0.438" |
| 6602-04-04-04-FG | Forged Steel | 1/4" | 1/4" | 7/16-20" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 0.172" | 0.890" | 0.650" | 1.000" | 0.890" | 0.563" | 0.438" |
| 6602-04-06-06-FG | Forged Steel | 1/4" | 3/8" | 7/16-20" | 9/16-18" | 9/16-18" | 0.172" | 0.172" | 0.297" | 1.050" | 0.875" | 1.250" | 1.060" | 0.688" | 0.562" |
| 6602-05-05-05-FG | Forged Steel | 5/16" | 5/16" | 1/2-20" | 1/2-20" | 1/2-20" | 0.234" | 0.234" | 0.234" | 0.950" | 0.680" | 1.060" | 0.950" | 0.625" | 0.562" |
| 6602-06-06-04-FG | Forged Steel | 3/8" | 1/4" | 9/16-18" | 9/16-18" | 7/16-20" | 0.297" | 0.297" | 0.172" | 1.060" | 0.875" | 1.250" | 1.050" | 0.688" | 0.562" |
| 6602-06-06-06-FG | Forged Steel | 3/8" | 3/8" | 9/16-18" | 9/16-18" | 9/16-18" | 0.297" | 0.297" | 0.297" | 1.060" | 0.875" | 1.250" | 1.060" | 0.687" | 0.562" |
| 6602-06-08-06-FG | Forged Steel | 3/8" | 1/2" | 9/16-18" | 3/4-16" | 9/16-18" | 0.297" | 0.391" | 0.297" | 1.140" | 0.950" | 1.380" | 1.140" | 0.875" | 0.750" |
| 6602-06-08-08-FG | Forged Steel | 3/8" | 1/2" | 9/16-18" | 3/4-16" | 3/4-16" | 0.297" | 0.391" | 0.391" | 1.140" | 0.950" | 1.380" | 1.250" | 0.875" | 0.750" |
| 6602-08-08-04-FG | Forged Steel | 1/2" | 1/2" | 3/4-16" | 3/4-16" | 7/16-20" | 0.391" | 0.391" | 0.172" | 1.250" | 0.950" | 1.380" | 1.120" | 0.875" | 0.750" |
| 6602-08-08-06-FG | Forged Steel | 1/2" | 3/8" | 3/4-16" | 3/4-16" | 9/16-18" | 0.391" | 0.391" | 0.297" | 1.250" | 0.950" | 1.380" | 1.140" | 0.875" | 0.750" |
| 6602-08-08-08-FG | Forged Steel | 1/2" | 1/2" | 3/4-16" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 0.391" | 1.250" | 0.950" | 1.380" | 1.250" | 0.875" | 0.750" |
| 6602-08-08-12-FG | Forged Steel | 1/2" | 3/4" | 3/4-16" | 3/4-16" | 1-1/16-12" | 0.391" | 0.391" | 0.609" | 1.420" | 1.130" | 1.550" | 1.660" | 0.875" | 1.062" |
| 6602-08-12-12-FG | Forged Steel | 1/2" | 3/4" | 3/4-16" | 1-1/16-12" | 1-1/16-12" | 0.391" | 0.609" | 0.609" | 1.420" | 1.180" | 1.750" | 1.660" | 1.250" | 1.062" |
| 6602-10-10-10-FG | Forged Steel | 5/8" | 5/8" | 7/8-14" | 7/8-14" | 7/8-14" | 0.484" | 0.484" | 0.484" | 1.450" | 1.120" | 1.620" | 1.450" | 1.000" | 0.875" |
| 6602-10-10-12-FG | Forged Steel | 5/8" | 3/4" | 7/8-14" | 7/8-14" | 1-1/16-12" | 0.484" | 0.484" | 0.609" | 1.540" | 1.150" | 1.660" | 1.660" | 1.000" | 1.062" |
| 6602-12-12-04-FG | Forged Steel | 3/4" | 1/4" | 1-1/16-12" | 1-1/16-12" | 7/16-20" | 0.609" | 0.609" | 0.172" | 1.660" | 1.180" | 1.750" | 1.300" | 1.250" | 1.062" |
| 6602-12-12-12-FG | Forged Steel | 3/4" | 3/4" | 1-1/16-12" | 1-1/16-12" | 1-1/16-12" | 0.609" | 0.609" | 0.609" | 1.660" | 1.180" | 1.750" | 1.660" | 1.250" | 1.062" |
| 6602-12-16-12-FG | Forged Steel | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 6602-14-14-14-FG | Forged Steel | 7/8" | 7/8" | 1-3/16-12" | 1-3/16-12" | 1-3/16-12" | 0.719" | 0.719" | 0.719" | 1.800" | 1.200" | 1.780" | 1.800" | 1.375" | 1.312" |
| 6602-16-16-12-FG | Forged Steel | 1" | 3/4" | 1-5/16-12" | 1-5/16-12" | 1-1/16-12" | 0.844" | 0.844" | 0.609" | 1.810" | 1.400" | 2.000" | 1.760" | 1.500" | 1.312" |
| 6602-16-16-16-FG | Forged Steel | 1" | 1" | 1-5/16-12" | 1-5/16-12" | 1-5/16-12" | 0.844" | 0.844" | 0.844" | 1.810" | 1.400" | 2.000" | 1.810" | 1.500" | 1.312" |
| 6602-16-20-20-FG | Forged Steel | 1" | 1-1/4" | 1-5/16-12" | 1-5/8-12" | 1-5/8-12" | 0.844" | 1.078" | 1.078" | 2.010" | 1.670" | 2.310" | 2.060" | 2.000" | 1.625" |
| 6602-20-20-20-FG | Forged Steel | 1-1/4" | 1-1/4" | 1-5/8-12" | 1-5/8-12" | 1-5/8-12" | 1.078" | 1.078" | 1.078" | 2.060" | 1.685" | 2.310" | 2.060 | 2.000" | 1.625" |
| 6602-24-24-24-FG | Forged Steel | 1-1/2" | 1-1/2" | 1-7/8-12" | 1-7/8-12" | 1-7/8-12" | 1.312" | 1.312" | 1.312" | 2.330" | 1.870" | 2.590" | 2.330" | 2.250" | 1.875" |
| 6602-32-32-32-FG | Forged Steel | 2" | 2" | 2-1/2-12" | 2-1/2-12" | 2-1/2-12" | 1.781" | 1.781" | 1.781" | 3.060" | 2.430" | 3.380" | 3.060" | 2.875" | 2.500" |
| 6602-04-04-04-SS | Stainless Steel | 1/4" | 1/4" | 7/16-20" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 0.172" | 0.890" | 0.650" | 1.000" | 0.890" | 0.563" | 0.438" |
| 6602-05-05-05-SS | Stainless Steel | 5/16" | 5/16" | 1/2-20" | 1/2-20" | 1/2-20" | 0.234" | 0.234" | 0.234" | 0.950" | 0.680" | 1.060" | 0.950" | 0.625" | 0.562" |
| 6602-06-06-06-SS | Stainless Steel | 3/8" | 3/8" | 9/16-18" | 9/16-18" | 9/16-18" | 0.297" | 0.297" | 0.297" | 1.060" | 0.870" | 1.250" | 1.060" | 0.687" | 0.562" |
| 6602-08-08-08-SS | Stainless Steel | 1/2" | 1/2" | 3/4-16" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 0.391" | 1.250" | 1.080" | 1.380" | 1.250" | 0.875" | 0.750" |
| 6602-10-10-10-SS | Stainless Steel | 5/8" | 5/8" | 7/8-14" | 7/8-14" | 7/8-14" | 0.484" | 0.484" | 0.484" | 1.450" | 1.120" | 1.620" | 1.450" | 1.000" | 0.875" |
| 6602-12-12-12-SS | Stainless Steel | 3/4" | 3/4" | 1-1/16-12" | 1-1/16-12" | 1-1/16-12" | 0.609" | 0.609" | 0.609" | 1.660" | 1.180" | 1.750" | 1.660" | 1.250" | 1.062" |
| 6602-16-16-16-SS | Stainless Steel | 1" | 1" | 1-5/16-12" | 1-5/16-12" | 1-5/16-12" | 0.844" | 0.844" | 0.844" | 1.810" | 1.400" | 2.000" | 1.810" | 1.500" | 1.312" |
| 6602-20-20-20-SS | Stainless Steel | 1-1/4" | 1-1/4" | 1-5/8-12" | 1-5/8-12" | 1-5/8-12" | 1.078" | 1.078" | 1.078" | 2.060" | 1.685" | 2.310" | 2.060 | 2.000" | 1.625" |
| 6602-24-24-24-SS | Stainless Steel | 1-1/2" | 1-1/2" | 1-7/8-12" | 1-7/8-12" | 1-7/8-12" | 1.312" | 1.312" | 1.312" | 2.330" | 1.870" | 2.590" | 2.330" | 2.250" | 1.875" |
