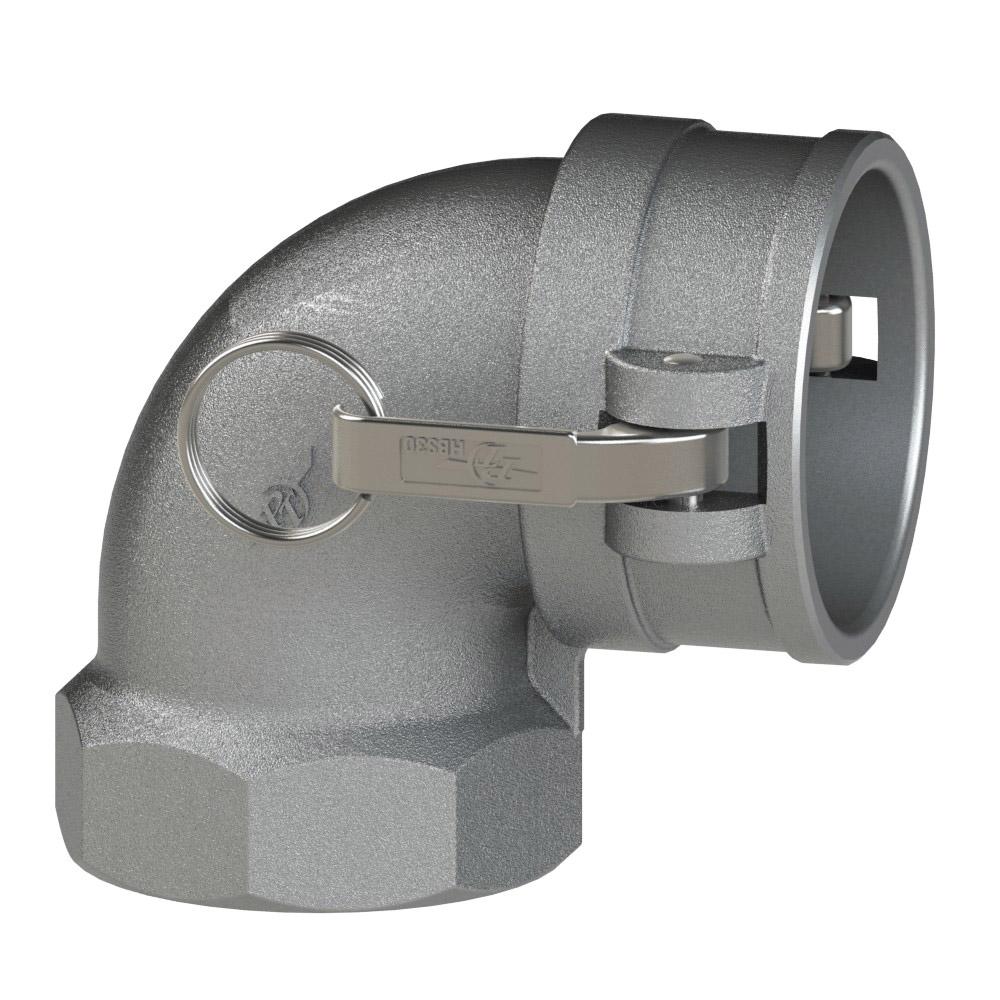

64484000 (40LD) by PT-Coupling | Cam & Groove Adapter | Type LD | 90° Elbow | 4" Coupler x 4" Female NPT | 316 Stainless Steel | Buna-N Seal
PT Coupling
Cam & Groove (Camlock) Adapter | Type LD | 90° Elbow | Coupler x Female NPT | 316 Stainless Steel | Buna-N Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $592.30 |
| 15–29 | $535.59 |
| 30+ | $472.58 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Cam & Groove Type:
Type D
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Orientation | Coupler Size |
Female NPT Thread |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|---|
| 10LD | 64481000 | 90° | 1" | 1" | 250 PSI |
| 15LD | 64481500 | 90° | 1-1/2" | 1-1/2" | 250 PSI |
| 30LD | 64483000 | 90° | 3" | 3" | 200 PSI |
| 40LD | 64484000 | 90° | 4" | 4" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
