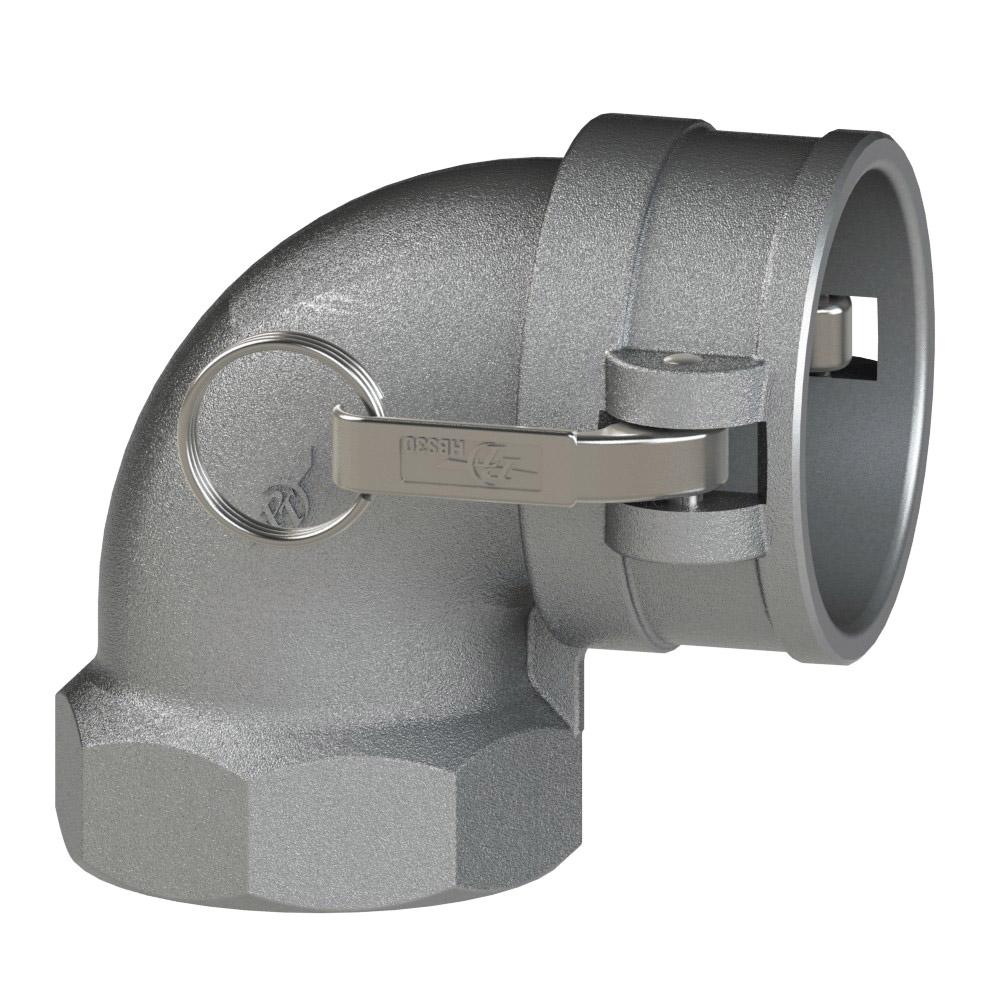

64481500 (15LD) by PT-Coupling | Cam & Groove Adapter | Type LD | 90° Elbow | 1-1/2" Coupler x 1-1/2" Female NPT | 316 Stainless Steel | Buna-N Seal

64481500 (15LD) by PT-Coupling | Cam & Groove Adapter | Type LD | 90° Elbow | 1-1/2" Coupler x 1-1/2" Female NPT | 316 Stainless Steel | Buna-N Seal

Sale price$166.26
Buy more, save moreDiscounts applied in cart/checkout.
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Orientation Coupler
Size		 Female NPT
Thread		 Max. Allowable
Working Press.
(PSI)*
10LD 64481000 90° 1" 1" 250 PSI
15LD 64481500 90° 1-1/2" 1-1/2" 250 PSI
30LD 64483000 90° 3" 3" 200 PSI
40LD 64484000 90° 4" 4" 150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

Additional Product Data:

Shape:

90 Degree

Cam & Groove Type:

Type D

Ends Configuration:
  • 1-1/2in Female Cam & Groove
  • 1-1/2in Female NPT

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
