6400X2X21 by Danfoss | Threaded Sleeve Adapter | Male Connector 90° Elbow | 1/8" Tube OD x 1/4-28 Male Pipe | Brass
6400X2X21 by Danfoss | Threaded Sleeve Adapter | Male Connector 90° Elbow | 1/8" Tube OD x 1/4-28 Male Pipe | Brass
6400X2X21 by Danfoss | Threaded Sleeve Adapter | Male Connector 90° Elbow | 1/8" Tube OD x 1/4-28 Male Pipe | Brass

6400X2X21 by Danfoss | Threaded Sleeve Adapter | Male Connector 90° Elbow | 1/8" Tube OD x 1/4-28 Male Pipe | Brass

Minimum Order Quantity: 5 Units

Sale price$6.28

Aeroquip® by Danfoss

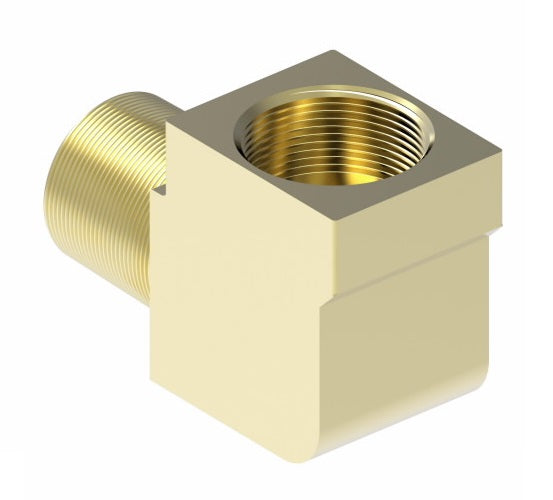

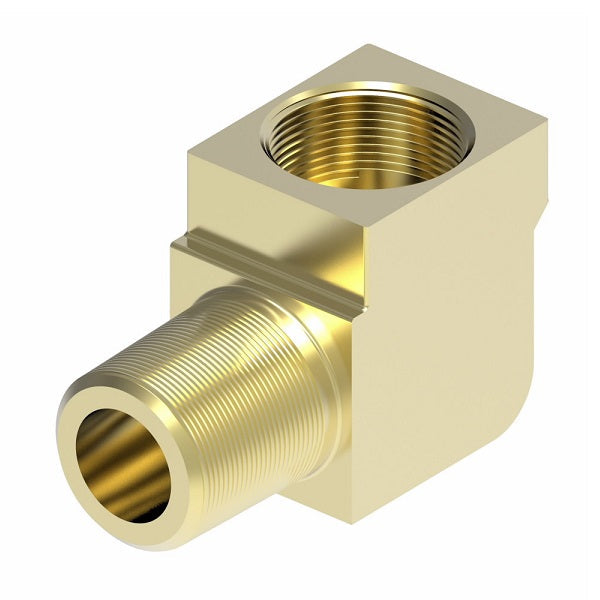

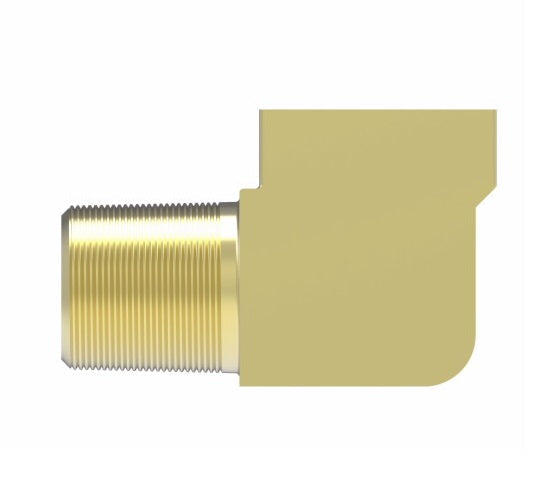

Threaded Sleeve Adapter - Male Connector - 90° Elbow
Buy More, Save More!
Quantity Price Each
20–39 $5.90
40–79 $5.34
80+ $4.71
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Material(s):
  • Brass
Applications:
  • Oil, air, water and lubrication systems.
Advantages:
  • Easy to assemble (no flaring).
  • Two (2) piece construction.
  • Fair Vibration Resistance.
Used With:
  • Aluminum and copper tubing.
  • Not recommended for steel tubing.
Material:
  • CA360 Brass.
Operating Pressure:
  • 500 psi for 1/8" to 1/4" sizes.
  • 250 psi for 5/16" and 3/8" sizes.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Meets ASA and ASME specifications.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-20 9/16-20
Brass
Part Number 		Tube OD Male Pipe Thread D D1 M N
6400X2 1/8" 1/8" 0.073" 0.125" 0.50" 0.66"
6400X2X21 1/8" 1/4-28 Tapered Male Thread 0.078" 0.080" 0.50" 0.52"
6400X3 3/16" 1/8" 0.141" 0.156" 0.56" 0.62"
6400X4 1/4" 1/8" 0.188" 0.188" 0.52" 0.62"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
