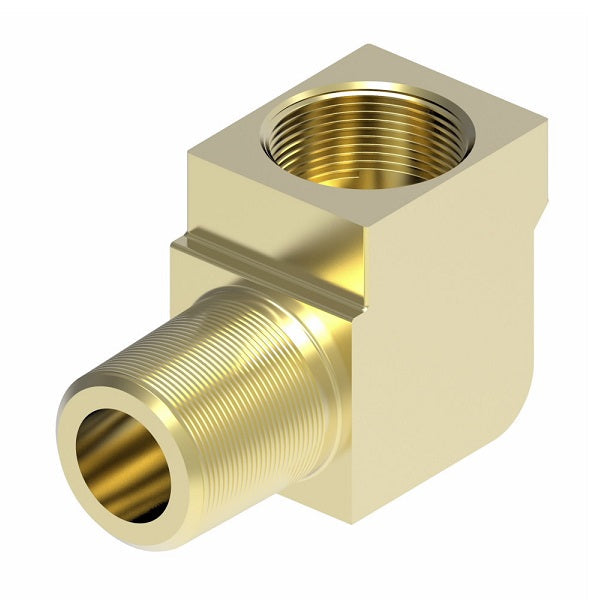

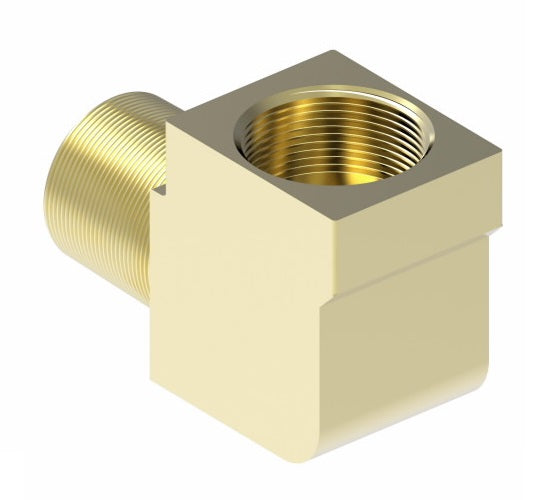

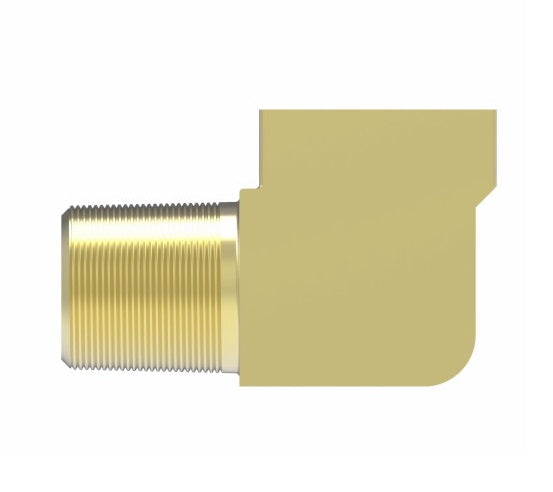

6400X2 by Danfoss | Threaded Sleeve Adapter | Male Connector 90° Elbow | 1/8" Tube OD x 1/8" Male Pipe | Brass
6400X2 by Danfoss | Threaded Sleeve Adapter | Male Connector 90° Elbow | 1/8" Tube OD x 1/8" Male Pipe | Brass
6400X2 by Danfoss | Threaded Sleeve Adapter | Male Connector 90° Elbow | 1/8" Tube OD x 1/8" Male Pipe | Brass

6400X2 by Danfoss | Threaded Sleeve Adapter | Male Connector 90° Elbow | 1/8" Tube OD x 1/8" Male Pipe | Brass

Sale price$10.65

Aeroquip® by Danfoss
Threaded Sleeve Adapter - Male Connector - 90° Elbow
Buy More, Save More!
Quantity Price Each
10–39 $10.01
40–79 $9.05
80+ $7.99
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Material(s):
  • Brass
Applications:
  • Oil, air, water and lubrication systems.
Advantages:
  • Easy to assemble (no flaring).
  • Two (2) piece construction.
  • Fair Vibration Resistance.
Used With:
  • Aluminum and copper tubing.
  • Not recommended for steel tubing.
Material:
  • CA360 Brass.
Operating Pressure:
  • 500 psi for 1/8" to 1/4" sizes.
  • 250 psi for 5/16" and 3/8" sizes.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Meets ASA and ASME specifications.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-20 9/16-20
Brass
Part Number 		Tube OD Male Pipe Thread D D1 M N
6400X2 1/8" 1/8" 0.073" 0.125" 0.50" 0.66"
6400X2X21 1/8" 1/4-28 Tapered Male Thread 0.078" 0.080" 0.50" 0.52"
6400X3 3/16" 1/8" 0.141" 0.156" 0.56" 0.62"
6400X4 1/4" 1/8" 0.188" 0.188" 0.52" 0.62"
