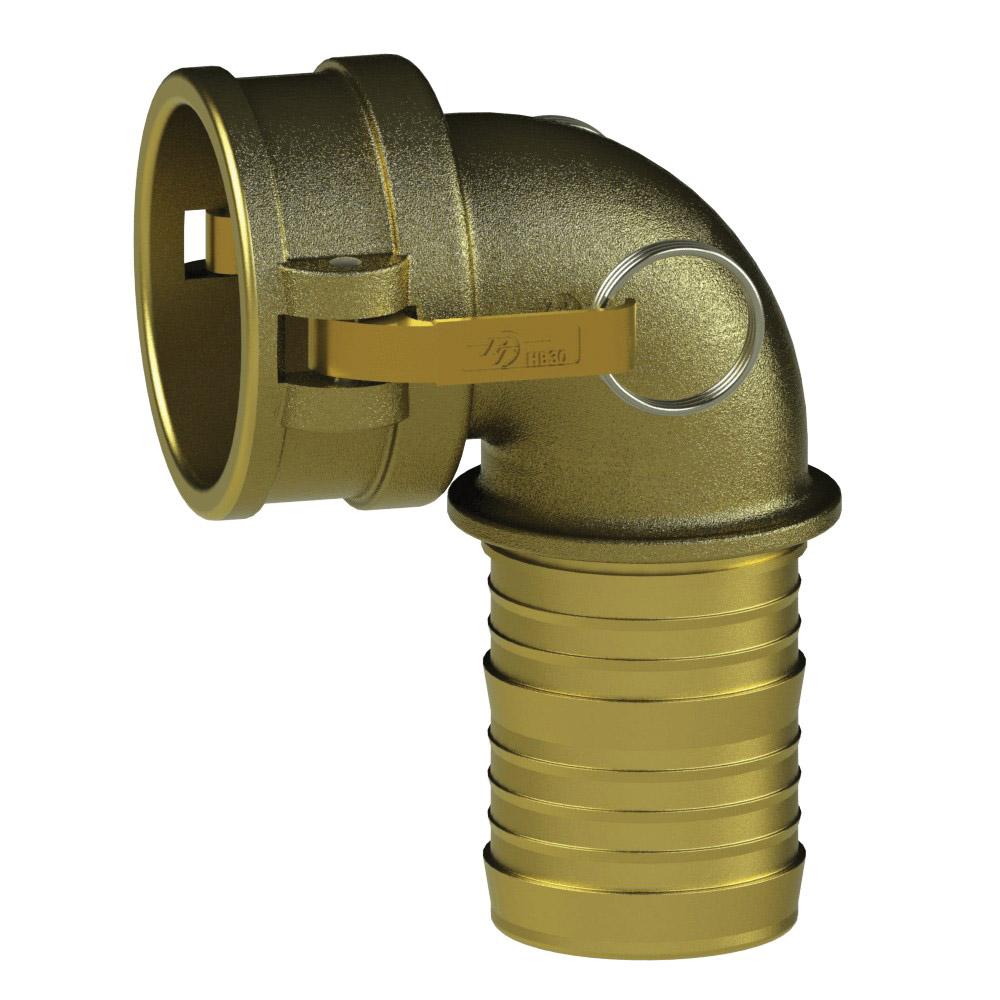

62502500 (25CL) by PT-Coupling | Cam & Groove Fitting | Type CL | 90° Elbow | 2-1/2" Coupler x 2-1/2" Hose Shank | Brass | Buna-N Seal
PT Coupling
Cam & Groove (Camlock) Fitting | Type CL | 90° Elbow | Coupler x Hose Shank | Brass | Buna-N Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $354.84 |
| 15–29 | $320.87 |
| 30+ | $283.12 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Cam & Groove Type:
Type C
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Orientation | Coupler Size |
Hose Shank Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|---|
| 10CL | 62501000 | 90° | 1" | 1" | 250 PSI |
| 12CL | 62501200 | 90° | 1-1/4" | 1-1/4" | 250 PSI |
| 15CL | 62501500 | 90° | 1-1/2" | 1-1/2" | 250 PSI |
| 20CL | 62502000 | 90° | 2" | 2" | 250 PSI |
| 25CL | 62502500 | 90° | 2-1/2" | 2-1/2" | 200 PSI |
| 30CL | 62503000 | 90° | 3" | 3" | 200 PSI |
| 40CL | 62504000 | 90° | 4" | 4" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
