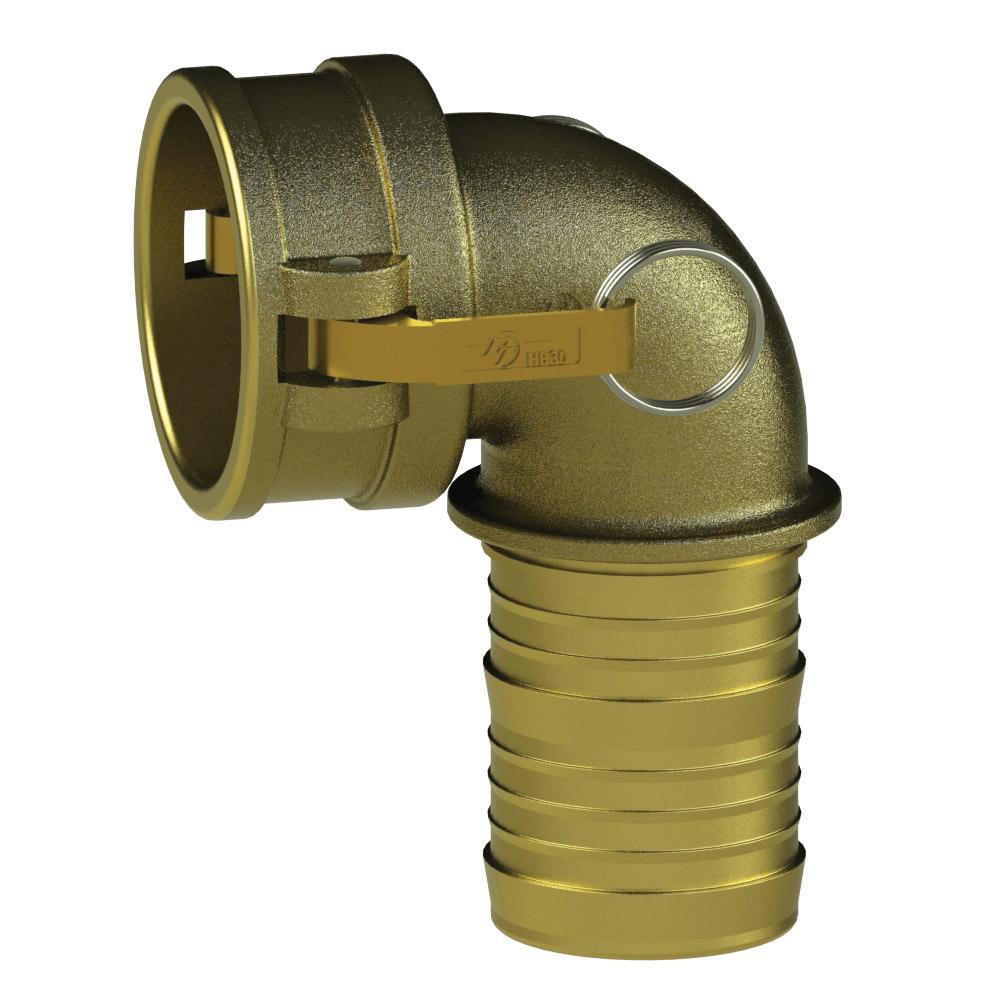

62502000 (20CL) by PT-Coupling | Cam & Groove Fitting | Type CL | 90° Elbow | 2" Coupler x 2" Hose Shank | Brass | Buna-N Seal
Buy more, save moreDiscounts applied in cart/checkout.
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Orientation | Coupler Size |
Hose Shank Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|---|
| 10CL | 62501000 | 90° | 1" | 1" | 250 PSI |
| 12CL | 62501200 | 90° | 1-1/4" | 1-1/4" | 250 PSI |
| 15CL | 62501500 | 90° | 1-1/2" | 1-1/2" | 250 PSI |
| 20CL | 62502000 | 90° | 2" | 2" | 250 PSI |
| 25CL | 62502500 | 90° | 2-1/2" | 2-1/2" | 200 PSI |
| 30CL | 62503000 | 90° | 3" | 3" | 200 PSI |
| 40CL | 62504000 | 90° | 4" | 4" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
Additional Product Data:
Shape:
90 Degree
Cam & Groove Type:
Type C
Ends Configuration:
Material(s):
Seal Material(s):
