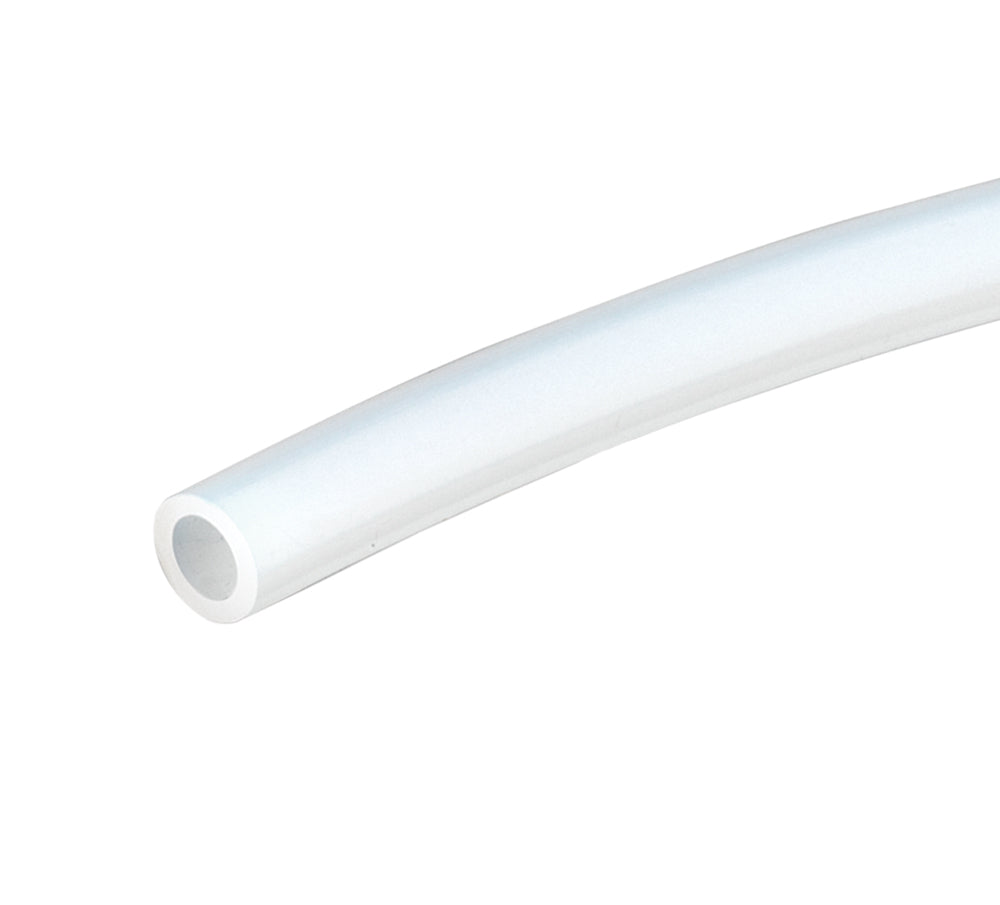

620P-0863X100 Kuri-Tec by Kuriyama | 620P Series | Polytetrafluorethylene (PTFE) Tubing | 1/2" OD | 0.375" ID | 0.063" Wall Thickness | 100ft Length

$698.27

Kuri Tec® by Kuriyama
620P Series | Polytetrafluorethylene (PTFE) Tubing

Chemical resistant PTFE tubing is compatible with an extremely wide range of industrial chemicals and solvents.

Tubing complies with applicable FDA and USP Class VI requirements.

Package Quantity: 100 Foot

Quantity:

Discounts applied in cart/checkout.

Product Data:

Brand:

Series:

Color(s):

Other Features:
Applications:	Aerospace and aviation applications. Chemical transfer. Industrial and mechanical applications. Medical applications.
Tube:	PTFE - natural color. Formulated with ingredients in compliance with applicable FDA requirements. Meets USP Class VI and RoHS criteria.
Cover:	-	Service Temperature Range:	-454°F (-270°C) to +500°F (+260°C)
Specifications:	FDA UL USP Phthalate Free RoHS
Superior Chemical Resistance - Chemical resistant PTFE compatible with an extremely wide range of industrial chemicals and solvents. Handles Extreme Temperatures - Service temperature range from -454°F to +500°F. Widest temperature range of any Kuri Tec product. Food Grade Materials - Tubing complies with applicable FDA and USP Class VI requirements. Chemically Inert - Will not react with most substances. Flame Retardant - Manufactured to meet UL94-V-O rating of the Standard for Safety of Flammability of Plastic Material in Devices and Appliance Testing. Meets ASTM-D3295 - Physical properties compliant with ASTM requirements for PTFE tubing.

Part Number 100ft	Nominal OD		Nominal ID		Nominal Wall		Working Pressure (PSI)
Part Number 100ft	(in)	(mm)	(in)	(mm)	(in)	(mm)	at 70°F (20°C)
620P-0463X100	1/4"	6.4mm	0.125"	3.2mm	0.063"	1.6mm	372 PSI
620P-0431X100	1/4"	6.4mm	0.188"	4.8mm	0.031"	0.8mm	174 PSI
620P-0663X100	3/8"	9.5mm	0.250"	6.4mm	0.063"	1.6mm	240 PSI
620P-0863X100	1/2"	12.7mm	0.375"	9.5mm	0.063"	1.6mm	150 PSI
