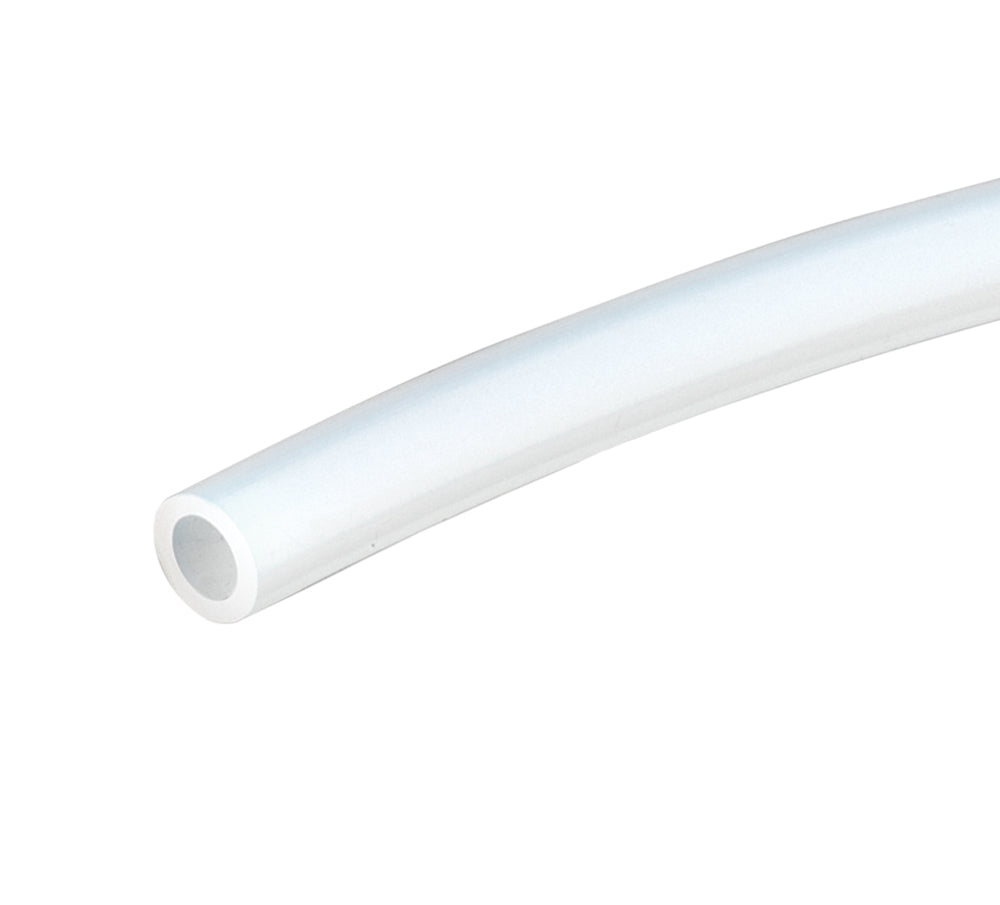

620P-0463X100 Kuri-Tec by Kuriyama | 620P Series | Polytetrafluorethylene (PTFE) Tubing | 1/4" OD | 0.125" ID | 0.063" Wall Thickness | 100ft Length

620P-0463X100 Kuri-Tec by Kuriyama | 620P Series | Polytetrafluorethylene (PTFE) Tubing | 1/4" OD | 0.125" ID | 0.063" Wall Thickness | 100ft Length

Sale price$303.95

Package Quantity: 100 Foot

Buy more, save moreDiscounts applied in cart/checkout.

SPECIFICATIONS

Applications: Aerospace and aviation applications.
Chemical transfer.
Industrial and mechanical applications.
Medical applications.
Tube: PTFE - natural color. Formulated with ingredients in compliance with applicable FDA requirements. Meets USP Class VI and RoHS criteria.
Cover: - Service Temperature Range: -454°F (-270°C) to +500°F (+260°C)
Specifications: FDA
UL
USP
Phthalate Free
RoHS
Other Features:
  • Superior Chemical Resistance - Chemical resistant PTFE compatible with an extremely wide range of industrial chemicals and solvents.
  • Handles Extreme Temperatures - Service temperature range from -454°F to +500°F. Widest temperature range of any Kuri Tec product.
  • Food Grade Materials - Tubing complies with applicable FDA and USP Class VI requirements.
  • Chemically Inert - Will not react with most substances.
  • Flame Retardant - Manufactured to meet UL94-V-O rating of the Standard for Safety of Flammability of Plastic Material in Devices and Appliance Testing.
  • Meets ASTM-D3295 - Physical properties compliant with ASTM requirements for PTFE tubing.
Part Number
100ft		 Nominal OD Nominal ID Nominal Wall Working
Pressure (PSI)
(in) (mm) (in) (mm) (in) (mm) at 70°F (20°C)
620P-0463X100 1/4" 6.4mm 0.125" 3.2mm 0.063" 1.6mm 372 PSI
620P-0431X100 1/4" 6.4mm 0.188" 4.8mm 0.031" 0.8mm 174 PSI
620P-0663X100 3/8" 9.5mm 0.250" 6.4mm 0.063" 1.6mm 240 PSI
620P-0863X100 1/2" 12.7mm 0.375" 9.5mm 0.063" 1.6mm 150 PSI

Additional Product Data:

Brand:
  • Kuri Tec
Series:
  • 620P Series
Color(s):
  • White/Off-White

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
