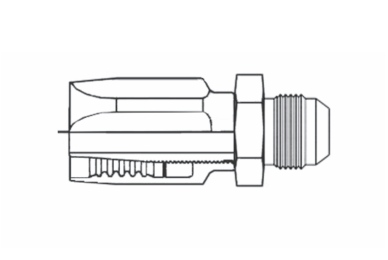

5R5-5MJ by Couplamatic | R5 Reusable Coupling | 1/4" Hose ID x 1/2-20 Thread Size JIC 37° Male Solid | Straight | Trivalent Zinc Plating

5R5-5MJ by Couplamatic | R5 Reusable Coupling | 1/4" Hose ID x 1/2-20 Thread Size JIC 37° Male Solid | Straight | Trivalent Zinc Plating

Sale price$21.42

Couplamatic Systems Inc.
Reusable Couplings - 100R5 - R5 Reusables - JIC 37° - Male Solid
Buy More, Save More!
Quantity Price Each
10–39 $20.13
40–79 $18.21
80+ $16.07
Discounts applied in cart/checkout.

Product Data:

Series:
  • Reusable Fitting Series
Shape:

Straight

Ends Configuration:
  • 5/8in Male JIC
  • 1/4in Reusable Hose End
Description:
  • Non-Mandrel and No Skive.
  • Trivalent Zinc Plating.
  • 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
  • 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.
Part Number Hose ID Hose Dash Size Thread Size Tube OD Hose Type
4R5-4MJ 3/16" -04 7/16-20 1/4" 100R5
5R5-5MJ 1/4" -05 1/2-20 5/16" 100R5
8R5-8MJ 13/32" -08 3/4-16 1/2" 100R5

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
