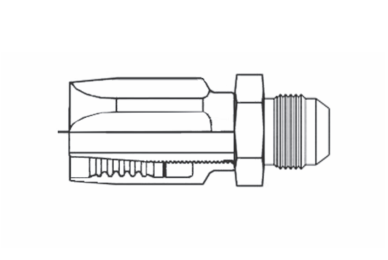

8R5-8MJ by Couplamatic | R5 Reusable Coupling | 13/32" Hose ID x 3/4-16 Thread Size JIC 37° Male Solid | Straight | Trivalent Zinc Plating

8R5-8MJ by Couplamatic | R5 Reusable Coupling | 13/32" Hose ID x 3/4-16 Thread Size JIC 37° Male Solid | Straight | Trivalent Zinc Plating

Sale price$24.20

Couplamatic Systems Inc.
Reusable Couplings - 100R5 - R5 Reusables - JIC 37° - Male Solid
Buy More, Save More!
Quantity Price Each
10–39 $22.75
40–79 $20.57
80+ $18.15
Discounts applied in cart/checkout.

Product Data:

Series:
  • Reusable Fitting Series
Shape:

Straight

Ends Configuration:
  • 1/2in Male JIC
  • 13/32in Reusable Hose End
Description:
  • Non-Mandrel and No Skive.
  • Trivalent Zinc Plating.
  • 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
  • 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.
Part Number Hose ID Hose Dash Size Thread Size Tube OD Hose Type
4R5-4MJ 3/16" -04 7/16-20 1/4" 100R5
5R5-5MJ 1/4" -05 1/2-20 5/16" 100R5
8R5-8MJ 13/32" -08 3/4-16 1/2" 100R5
