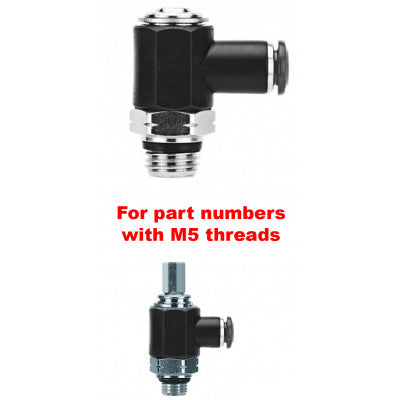

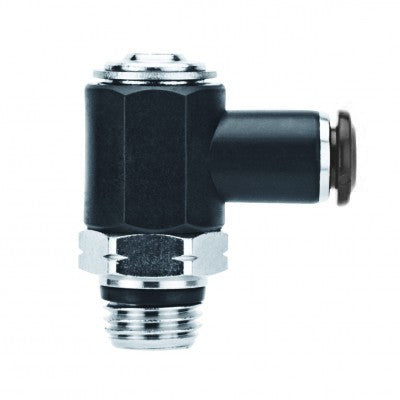

55910-6-M5 by AIGNEP | Functional (Flow Controls) Series | Flow Control | Meter In | Screwdriver Adjust | 6mm Tube x M5 Male
55910-6-M5 by AIGNEP | Functional (Flow Controls) Series | Flow Control | Meter In | Screwdriver Adjust | 6mm Tube x M5 Male
55910-6-M5 by AIGNEP | Functional (Flow Controls) Series | Flow Control | Meter In | Screwdriver Adjust | 6mm Tube x M5 Male

55910-6-M5 by AIGNEP | Functional (Flow Controls) Series | Flow Control | Meter In | Screwdriver Adjust | 6mm Tube x M5 Male

Sale price$16.08
Buy More, Save More!
Quantity Price Each
10–39 $15.12
40–79 $13.67
80+ $12.06
Discounts applied in cart/checkout.

Product Data:

Series:
  • Functional (Flow Controls) Series
Shape:

90 Degree

Material(s):
  • Nylon

Metric Tube Needle Valve (IN)

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number Tube A B L1 L2 CH Code
55910-4-M5 4 mm M5 4 mm 19.5 mm 29.5 mm 8 mm V
55910-4-1/8 4 mm 1/8" 5.5 mm 21.5 mm 31 mm 14 mm V
55910-5-M5 5 mm M5 4 mm 20.5 mm 29.5 mm 8 mm V
55910-5-1/8 5 mm 1/8" 5.5 mm 22.5 mm 31 mm 14 mm V
55910-5-1/4 5 mm 1/4" 7 mm 25 mm 36.5 mm 17 mm V
55910-6-M5 6 mm M5 4 mm 21 mm 29.5 mm 8 mm V
55910-6-1/8 6 mm 1/8" 5.5 mm 23 mm 31 mm 14 mm V
55910-6-1/4 6 mm 1/4" 7 mm 25.5 mm 36.5 mm 17 mm V
55910-8-1/8 8 mm 1/8" 5.5 mm 23.5 mm 31 mm 14 mm V
55910-8-1/4 8 mm 1/4" 7 mm 26 mm 36.5 mm 17 mm V
55910-8-3/8 8 mm 3/8" 8.5 mm 27.5 mm 42.5 mm 20 mm V
55910-10-3/8 10 mm 3/8" 8.5 mm 30.5 mm 42.5 mm 20 mm V
55910-12-3/8 12 mm 3/8" 8.5 mm 32.5 mm 42.5 mm 20 mm V
55910-12-1/2 12 mm 1/2" 10 mm 35 mm 47 mm 24 mm V

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
