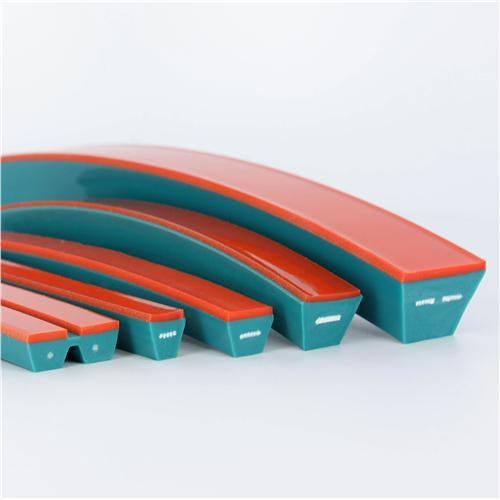

5260530 by Fenner Drives | Eagle Hyfen 85 CXF V Belting | Cross Section B/17 | 0.66" w x 0.51" h, | Reinforced | Blue, Green, Orange | 100ft
Fenner Drives

5260530 by Fenner Drives | Eagle Hyfen 85 CXF V Belting | Cross Section B/17 | 0.66" w x 0.51" h, | Reinforced | Blue, Green, Orange | 100ft

Sale price$2,397.37
Fenner Drives - Conveying - V Belting - Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:
  • Eagle Hyfen 85 Reinforced CXF Vee Belting is a co-extruded belt constructed of a polyester reinforced 85 A durometer polyurethane base belt and a softer, higher CoF (coefficient of friction) 60 A durometer polyurethane top surface. Packaged in 100'/30.5m lengths.
Description:
  • Fenner Drives unique dual durometer belts offer strength and load carrying capabilities with the added bonus of the ultra-grip tops. The combination of a tough 85A durometer base and an ultra-grip co-extruded 60A top surface gives you the strength and grip that your demanding application needs! In addition to the already reliant durability of this belt, there is also a polyester reinforcing tensile member to increase the strength of the belt.

    Best Suited For: Conveying applications that require an extremely strong, low stretch vee belt combined with a high traction surface. Perfectly suited for carrying heavy loads up an inclined conveyor.

  • 85A polyurethane base durometer
  • 60A co-extruded unltra-grip top surface
  • Strength and load carrying capabilities
  • Polyester reinforcing tensile membert
  • RoHS 2002/95/EC Directive Compliant


    • This CXF belt has a flat top surface providing you with the extra grip you need for your application. Our integrally bonded tops cannot delaminate leaving you worry and stress free! Fenner Drives Eagle Co-Extruded belting easily outperforms all adhesively bonded special surface belts!

    Eagle Hyfen 85 Reinforced CXF Vee Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.

    Since Eagle Eagle Hyfen 85 Reinforced CXF Vee Belts are not self-tensioning, they work perfectly with Fenner Drives' own T-Max Automatic Belt Tensioners.

SPECIFICATIONS

Profile Shape: Twin, Vee Profile Size: A/13, B/17, C/22, D/32
Reinforcement: Polyester Tape Color: Blue, Green, Orange
Compliancy: RoHS Durometer: 60A, 85A
Material: Polyurethane Special Feature: Smooth Ultra-Grip 60A Top Surface
Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions
w x h*		 Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
5260300 Eagle Hyfen 95 B 21/32 x 1/2" --- 5" 127mm 26.9 119.6.2 39.1 173.8 50.2 223.3 60.7 270.1 0.131 lbs 0.196 kg
5230000 Eagle Hyfen 95 B Cogged 21/32 x 1/2" --- 4" 102mm 26.9 119.6.2 39.1 173.8 50.2 223.3 60.7 270.1 0.131 lbs 0.196 kg
5299009 Eagle Hyfen 85 B Ridge-Top 21/32 x 11/16" --- 7.56" 192mm 25.7 114.4 37 164.6 49.9 221.7 63.2 280.9 0.161 lbs 0.239 kg
L04OP80BR Eagle Opaque 80 B/17 21/32 x 7/16" 17 x 11.5mm 4.53" 115mm 11 48.8 29.7 132 44.6 198.4 54.5 242.6 0.123 lbs 0.183 kg
4940067 Eagle Orange 85 B/17 21/32 x 7/16" 17 x 11.5mm 4.38" 115mm 7.1 31.6 16.9 75.2 27 120 35.5 158 0.119 lbs 0.177 kg
L04I85BR Eagle Ivory 85 B/17 21/32 x 7/16" 17 x 11.5mm 4.53" 115mm 9 39.9 27.1 120.5 43.1 191.9 55 244.8 0.118 lbs 0.175 kg
4940127 Eagle Green 89 B/17 21/32 x 7/16" 17 x 11.5mm 4.53 115mm 7 31.2 26.5 117.9 100.1 445.3 164.7 732.8 0.12 lbs 0.178 kg
4940076 Eagle Beige 95 B/17 21/32 x 7/16" 17 x 11.5mm 5.43" 138mm 38.8 172.7 90.6 403 132.9 591 163.5 727.2 0.124 lbs 0.184 kg
4940072 Eagle Beige 95 B/17 Cogged 21/32 x 7/16" 17 x 11.5mm 4.43" 113mm 38.8 172.7 90.6 403 132.9 591 163.5 727.2 0.124 lbs 0.184 kg
L04I85BRXH Eagle Ivory 85 B/17 Ridge-Top --- 17 x 19.5mm 7.68" 195mm 13.3 59 40.1 178.3 63.8 283.8 81.4 362 0.174 lbs 0.259 kg
L04G89BRXH Eagle Green 89 B/17 Ridge-Top --- 17 x 19.5mm 7.68" 195mm 10.2 45.4 38.5 171.4 145.5 647.3 239.5 1065.1 0.174 lbs 0.259 kg
5260530 Eagle Hyfen 85 CXF B 0.66 x 0.51" --- 5.89" 150mm 25.7 114.4 37 164.6 49.9 221.7 63.2 280.9 0.141 lbs 0.21 kg
5260535 Eagle Hyfen 85 CXR B 0.66 x 0.51" --- 5.89" 150mm 25.7 114.4 37 164.6 49.9 221.7 63.2 280.9 0.122 lbs 0.181 kg
493020030M Eagle Ivory 85 SGT PU B/17 0.60 x 0.60" 17 x 15.56mm 5.36" 136mm 9 39.9 27.1 120.5 43.1 191.9 55 244.8 0.146 lbs 0.218 kg
L04I85BRSG Eagle Ivory 85 SGT PVC B/17 0.66 x 0.66" 17 x 17.01mm 5.36" 136mm 9 39.9 27.1 120.5 43.1 191.9 55 244.8 0.158 lbs 0.235 kg
493160030M Eagle Ivory 85 SGT TPE B/17 0.60 x 0.61" 17 x 15.84mm 5.36" 136mm 9 39.9 27.1 120.5 43.1 191.9 55 244.8 0.144 lbs 0.215 kg
