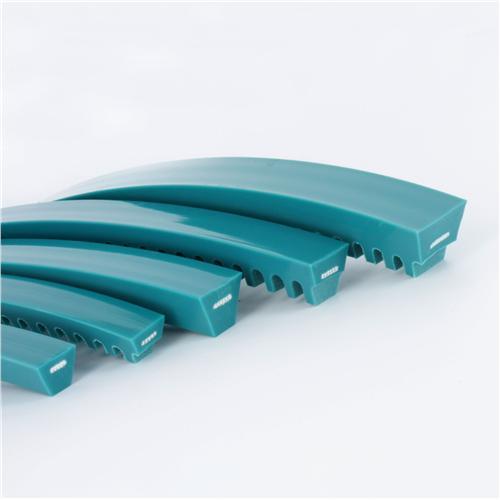

5260300 by Fenner Drives | Eagle Hyfen 95 V Belting | Cross Section B | 21/32" w x 1/2" h, | Reinforced | Green, Blue | 100ft
Fenner Drives

5260300 by Fenner Drives | Eagle Hyfen 95 V Belting | Cross Section B | 21/32" w x 1/2" h, | Reinforced | Green, Blue | 100ft

Sale price$1,614.02
Fenner Drives - Conveying - V Belting - Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 95 Series
Overview:
  • Eagle Hyfen 95 Reinforced Belting is the ideal high-strength, low-stretch choice with a 95 Shore A durometer and a polyester reinforcing tensile member. Packaged in 100'/30.5m lengths.
Description:
  • Fenner Drives Eagle Hyfen 95 Reinforced Belts are made of an 95 Shore A durometer polyurethane belting with a polyester reinforcing tensile member making this product an ideal high-strength, low-stretch choice for longer conveyor lengths, heavier load, or medium-duty power transmission applications.

    Best Suited For: Longer conveyor lengths, heavier conveyed loads, or medium-duty power transmission applications.

  • 95 Shore A durometer polyurethane belting
  • High strength, low-stretch
  • REACH and RoHS 2002/95/EC Directive Compliant
  • Independently tested and verified to meet FDA standards for direct food contact


    • Eagle Hyfen 95 Reinforced Belts offer all the dependable features of Fenner Drives Original Orange Reinforced Belt plus the added benefit of more strength due to the stronger reinforcing tensile member!

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Hyfen 95 Reinforced Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.

    Since Eagle Hyfen 95 Specialty Belts are not self-tensioning, they work perfectly with Fenner Drives' own T-Max Automatic Belt Tensioners.

SPECIFICATIONS

Profile Shape: Vee, Vee Cogged Profile Size: A/13, B/17, C/22
Reinforcement: Polyester Tape Color: Blue, Green
Compliancy: FDA, RoHS Durometer: 95A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions
w x h*		 Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
5260300 Eagle Hyfen 95 B 21/32 x 1/2" --- 5" 127mm 26.9 119.6.2 39.1 173.8 50.2 223.3 60.7 270.1 0.131 lbs 0.196 kg
5230000 Eagle Hyfen 95 B Cogged 21/32 x 1/2" --- 4" 102mm 26.9 119.6.2 39.1 173.8 50.2 223.3 60.7 270.1 0.131 lbs 0.196 kg
5299009 Eagle Hyfen 85 B Ridge-Top 21/32 x 11/16" --- 7.56" 192mm 25.7 114.4 37 164.6 49.9 221.7 63.2 280.9 0.161 lbs 0.239 kg
L04OP80BR Eagle Opaque 80 B/17 21/32 x 7/16" 17 x 11.5mm 4.53" 115mm 11 48.8 29.7 132 44.6 198.4 54.5 242.6 0.123 lbs 0.183 kg
4940067 Eagle Orange 85 B/17 21/32 x 7/16" 17 x 11.5mm 4.38" 115mm 7.1 31.6 16.9 75.2 27 120 35.5 158 0.119 lbs 0.177 kg
L04I85BR Eagle Ivory 85 B/17 21/32 x 7/16" 17 x 11.5mm 4.53" 115mm 9 39.9 27.1 120.5 43.1 191.9 55 244.8 0.118 lbs 0.175 kg
4940127 Eagle Green 89 B/17 21/32 x 7/16" 17 x 11.5mm 4.53 115mm 7 31.2 26.5 117.9 100.1 445.3 164.7 732.8 0.12 lbs 0.178 kg
4940076 Eagle Beige 95 B/17 21/32 x 7/16" 17 x 11.5mm 5.43" 138mm 38.8 172.7 90.6 403 132.9 591 163.5 727.2 0.124 lbs 0.184 kg
4940072 Eagle Beige 95 B/17 Cogged 21/32 x 7/16" 17 x 11.5mm 4.43" 113mm 38.8 172.7 90.6 403 132.9 591 163.5 727.2 0.124 lbs 0.184 kg
L04I85BRXH Eagle Ivory 85 B/17 Ridge-Top --- 17 x 19.5mm 7.68" 195mm 13.3 59 40.1 178.3 63.8 283.8 81.4 362 0.174 lbs 0.259 kg
L04G89BRXH Eagle Green 89 B/17 Ridge-Top --- 17 x 19.5mm 7.68" 195mm 10.2 45.4 38.5 171.4 145.5 647.3 239.5 1065.1 0.174 lbs 0.259 kg
5260530 Eagle Hyfen 85 CXF B 0.66 x 0.51" --- 5.89" 150mm 25.7 114.4 37 164.6 49.9 221.7 63.2 280.9 0.141 lbs 0.21 kg
5260535 Eagle Hyfen 85 CXR B 0.66 x 0.51" --- 5.89" 150mm 25.7 114.4 37 164.6 49.9 221.7 63.2 280.9 0.122 lbs 0.181 kg
493020030M Eagle Ivory 85 SGT PU B/17 0.60 x 0.60" 17 x 15.56mm 5.36" 136mm 9 39.9 27.1 120.5 43.1 191.9 55 244.8 0.146 lbs 0.218 kg
L04I85BRSG Eagle Ivory 85 SGT PVC B/17 0.66 x 0.66" 17 x 17.01mm 5.36" 136mm 9 39.9 27.1 120.5 43.1 191.9 55 244.8 0.158 lbs 0.235 kg
493160030M Eagle Ivory 85 SGT TPE B/17 0.60 x 0.61" 17 x 15.84mm 5.36" 136mm 9 39.9 27.1 120.5 43.1 191.9 55 244.8 0.144 lbs 0.215 kg
