5101-10B Hansen® by Danfoss | Quick Disconnect Coupling | 5100 Series | 1/2" Female NPT x 5/8" Thread to Connect | Complete Plug and Socket Set | NBR Seal | Valved with Wing Nut Less Flange | Brass/Steel

5101-10B Hansen® by Danfoss | Quick Disconnect Coupling | 5100 Series | 1/2" Female NPT x 5/8" Thread to Connect | Complete Plug and Socket Set | NBR Seal | Valved with Wing Nut Less Flange | Brass/Steel

Sale price$111.38

Hansen® by Danfoss
5100 Series | Thread to Connect

Female NPT, Valved WITH Wing Nut Less Flange

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen 5100 Series brass coupling with steel tubular valve offers minimum air inclusion and fluid loss.

Thread together latch provides connect under pressure capability and vibration resistance.
Buy More, Save More!
Quantity Price Each
5–19 $104.70
20–59 $94.67
60+ $83.54
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • 5100 Series
Shape:

Straight
Product Features:
  • Tubular valve construction for virtually no fluid loss during disconnection, reduces environmental and worker safety hazards.
  • Low air inclusion during connection maintains system performance.
  • Connect against pressure capability allows connecting of halves even when pressurized up to 500 psi.
Applications & Markets:
  • Hydraulics and Fluid Transfer
  • On-highway Hydraulic Wet Lines
  • Dump and Refuse Vehicles
  • Bulk Liquid Transfer
  • Note: The 5100 Series is not rated for continuous hydraulic impulse applications.
Materials:
  • Standard body material: Brass body with high resistance carbon steel with zinc trivalent plated valving components, hex and wing nuts.
  • Standard seal materials: Nitrile (NBR).
Body Size Body Interface Size Max. Operating Pressure Connected Max. Operating Pressure Disconnected Vacuum Rated Flow Air Inclusion Fluid Loss
Plug/Male Half
S2 & S4		 Socket/Female Half
S5
1/4" 1/2" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 15 lpm 4 gpm .03 cc. max .01 cc. max
3/8" 1/2" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 26 lpm 7 gpm .05 cc. max .06 cc. max
1/2" 1/2" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 26 lpm 7 gpm .05 cc. max .10 cc. max
5/8" 3/4" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 68 lpm 18 gpm .14 cc. max .10 cc. max
3/4" 3/4" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 68 lpm 18 gpm .34 cc. max .26 cc. max
1" 1" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 151 lpm 40 gpm .50 cc. max .35 cc. max
1-1/4" 1-1/4" 190 bar 2,750 psi 172 bar 2,500 psi 190 bar 2,750 psi 28 in/Hg 284 lpm 75 gpm .68 cc. max .70 cc. max
1-1/2" 1-1/2" 172 bar 2,500 psi 172 bar 2,500 psi 138 bar 2,000 psi 28 in/Hg 379 lpm 100 gpm .60 cc. max .94 cc. max
Socket/Female (Figure 1)

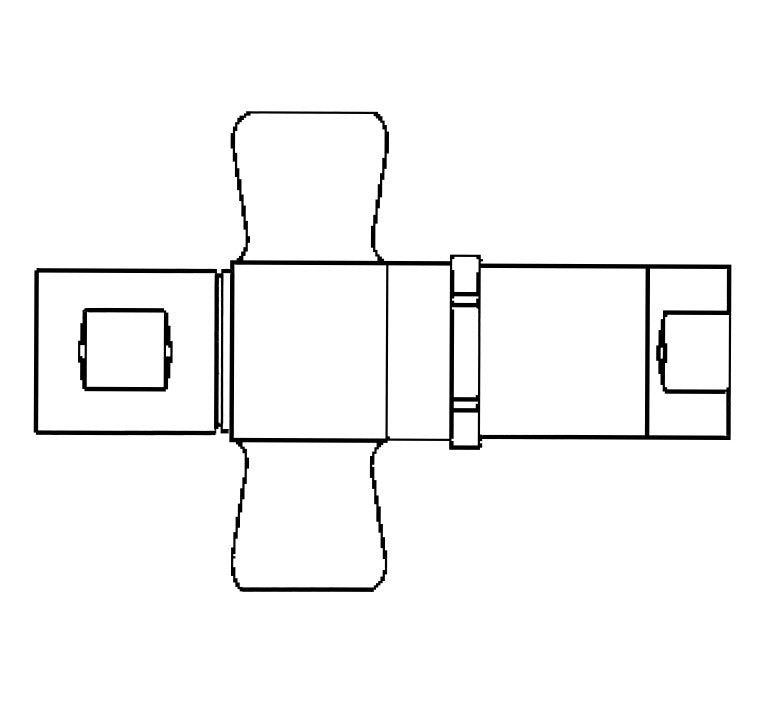

Complete (Figure 2)
Dimensions (Female NPT, Valved With Wing Nut Less Flange
Part Number Coupling
Type		 Body
Size		 Port
Size		 Thread Type Figure Dimensions
NBR A B Hex
5100-S5-4B Socket/Female 1/4" 1/8" 1/8-27 Female NPT 1 2.10"
(53.3mm)		 3.03"
(77.0mm)		 0.56"
(14.2mm)
5101-4B Complete 1/4" 1/8" 1/8-27 Female NPT 2 3.20"
(81.3mm)		 - -
5100-S5-6B Socket/Female 3/8" 1/4" 1/4-18 Female NPT 1 2.40"
(61.0mm)		 3.44"
(87.4mm)		 0.76"
(19.3mm)
5101-6B Complete 3/8" 1/4" 1/4-18 Female NPT 2 4.11"
(104.4mm)		 - -
5100-S5-8B Socket/Female 1/2" 3/8" 3/8-18 Female NPT 1 2.40"
(61.0mm)		 3.44"
(87.4mm)		 0.76"
(19.3mm)
5101-8B Complete 1/2" 3/8" 3/8-18 Female NPT 2 4.11"
(104.4mm)		 - -
5100-S5-10B Socket/Female 5/8" 1/2" 1/2-14 Female NPT 1 3.07"
(78.0mm)		 4.13"
(104.9mm)		 1.16"
(29.5mm)
5101-10B Complete 5/8" 1/2" 1/2-14 Female NPT 2 5.21"
(132.3mm)		 - -
5100-S5-12B Socket/Female 3/4" 3/4" 3/4-14 Female NPT 1 3.07"
(78.0mm)		 4.13"
(104.9mm)		 1.16"
(29.5mm)
5100-S5-16B Socket/Female 1" 1" 1-11-1/2 Female NPT 1 3.68"
(93.5mm)		 4.38"
(111.3mm)		 1.44"
(36.6mm)
5100-S5-20B Socket/Female 1-1/4" 1-1/4" 1-1/4-11-1/2 Female NPT 1 4.00"
(101.6mm)		 5.27"
(133.9mm)		 1.78"
(45.2mm)
5101-20B Complete 1-1/4" 1-1/4" 1-1/4-11-1/2 Female NPT 2 6.31"
(160.3mm)		 - -
5100-S5-24B Socket/Female 1-1/2" 1-1/2" 1-1/2-11-1/2 Female NPT 1 4.10"
(104.1mm)		 5.38"
(136.7mm)		 2.00"
(50.8mm)

5100 Series | Dust Caps & Dust Plugs
Dust Cap
with Chain
Part Number		 Dust Plug
with Chain
Part Number		 Dust Cap
without Chain
Part Number		 Body
Size
5100-S7-5 5100-S9-5 - 1/4"
5100-S7-8 5100-S9-8 5100-32-8 3/8" & 1/2"
5100-S7-12 5100-S9-12 5100-32-12 5/8" & 3/4"
5100-S7-16 5100-S9-16 5100-32-16 1"
5100-S7-20 5100-S9-20 5100-32-20 1-1/4"
5100-S7-24 5100-S9-24 5100-32-24 1-1/2"
