5101-4B Hansen® by Danfoss | Quick Disconnect Coupling | 5100 Series | 1/8" Female NPT x 1/4" Thread to Connect | Complete Plug and Socket Set | NBR Seal | Valved with Wing Nut Less Flange | Brass/Steel

5101-4B Hansen® by Danfoss | Quick Disconnect Coupling | 5100 Series | 1/8" Female NPT x 1/4" Thread to Connect | Complete Plug and Socket Set | NBR Seal | Valved with Wing Nut Less Flange | Brass/Steel

Sale price$91.70
Buy more, save moreDiscounts applied in cart/checkout.
Product Features:
  • Tubular valve construction for virtually no fluid loss during disconnection, reduces environmental and worker safety hazards.
  • Low air inclusion during connection maintains system performance.
  • Connect against pressure capability allows connecting of halves even when pressurized up to 500 psi.
Applications & Markets:
  • Hydraulics and Fluid Transfer
  • On-highway Hydraulic Wet Lines
  • Dump and Refuse Vehicles
  • Bulk Liquid Transfer
  • Note: The 5100 Series is not rated for continuous hydraulic impulse applications.
Materials:
  • Standard body material: Brass body with high resistance carbon steel with zinc trivalent plated valving components, hex and wing nuts.
  • Standard seal materials: Nitrile (NBR).
Body Size Body Interface Size Max. Operating Pressure Connected Max. Operating Pressure Disconnected Vacuum Rated Flow Air Inclusion Fluid Loss
Plug/Male Half
S2 & S4		 Socket/Female Half
S5
1/4" 1/2" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 15 lpm 4 gpm .03 cc. max .01 cc. max
3/8" 1/2" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 26 lpm 7 gpm .05 cc. max .06 cc. max
1/2" 1/2" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 26 lpm 7 gpm .05 cc. max .10 cc. max
5/8" 3/4" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 68 lpm 18 gpm .14 cc. max .10 cc. max
3/4" 3/4" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 68 lpm 18 gpm .34 cc. max .26 cc. max
1" 1" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 151 lpm 40 gpm .50 cc. max .35 cc. max
1-1/4" 1-1/4" 190 bar 2,750 psi 172 bar 2,500 psi 190 bar 2,750 psi 28 in/Hg 284 lpm 75 gpm .68 cc. max .70 cc. max
1-1/2" 1-1/2" 172 bar 2,500 psi 172 bar 2,500 psi 138 bar 2,000 psi 28 in/Hg 379 lpm 100 gpm .60 cc. max .94 cc. max
Socket/Female (Figure 1)

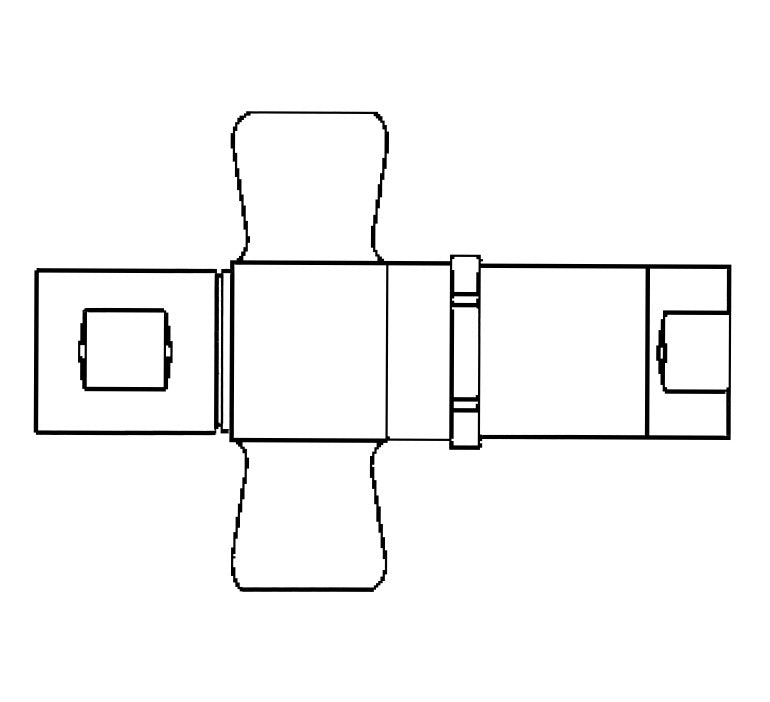

Complete (Figure 2)
Dimensions (Female NPT, Valved With Wing Nut Less Flange
Part Number Coupling
Type		 Body
Size		 Port
Size		 Thread Type Figure Dimensions
NBR A B Hex
5100-S5-4B Socket/Female 1/4" 1/8" 1/8-27 Female NPT 1 2.10"
(53.3mm)		 3.03"
(77.0mm)		 0.56"
(14.2mm)
5101-4B Complete 1/4" 1/8" 1/8-27 Female NPT 2 3.20"
(81.3mm)		 - -
5100-S5-6B Socket/Female 3/8" 1/4" 1/4-18 Female NPT 1 2.40"
(61.0mm)		 3.44"
(87.4mm)		 0.76"
(19.3mm)
5101-6B Complete 3/8" 1/4" 1/4-18 Female NPT 2 4.11"
(104.4mm)		 - -
5100-S5-8B Socket/Female 1/2" 3/8" 3/8-18 Female NPT 1 2.40"
(61.0mm)		 3.44"
(87.4mm)		 0.76"
(19.3mm)
5101-8B Complete 1/2" 3/8" 3/8-18 Female NPT 2 4.11"
(104.4mm)		 - -
5100-S5-10B Socket/Female 5/8" 1/2" 1/2-14 Female NPT 1 3.07"
(78.0mm)		 4.13"
(104.9mm)		 1.16"
(29.5mm)
5101-10B Complete 5/8" 1/2" 1/2-14 Female NPT 2 5.21"
(132.3mm)		 - -
5100-S5-12B Socket/Female 3/4" 3/4" 3/4-14 Female NPT 1 3.07"
(78.0mm)		 4.13"
(104.9mm)		 1.16"
(29.5mm)
5100-S5-16B Socket/Female 1" 1" 1-11-1/2 Female NPT 1 3.68"
(93.5mm)		 4.38"
(111.3mm)		 1.44"
(36.6mm)
5100-S5-20B Socket/Female 1-1/4" 1-1/4" 1-1/4-11-1/2 Female NPT 1 4.00"
(101.6mm)		 5.27"
(133.9mm)		 1.78"
(45.2mm)
5101-20B Complete 1-1/4" 1-1/4" 1-1/4-11-1/2 Female NPT 2 6.31"
(160.3mm)		 - -
5100-S5-24B Socket/Female 1-1/2" 1-1/2" 1-1/2-11-1/2 Female NPT 1 4.10"
(104.1mm)		 5.38"
(136.7mm)		 2.00"
(50.8mm)

5100 Series | Dust Caps & Dust Plugs
Dust Cap
with Chain
Part Number		 Dust Plug
with Chain
Part Number		 Dust Cap
without Chain
Part Number		 Body
Size
5100-S7-5 5100-S9-5 - 1/4"
5100-S7-8 5100-S9-8 5100-32-8 3/8" & 1/2"
5100-S7-12 5100-S9-12 5100-32-12 5/8" & 3/4"
5100-S7-16 5100-S9-16 5100-32-16 1"
5100-S7-20 5100-S9-20 5100-32-20 1-1/4"
5100-S7-24 5100-S9-24 5100-32-24 1-1/2"
