5/16" TR14 by Couplamatic | PTFE Hydraulic Hose | One Stainless Braid | 5/16" ID | 50ft Bulk Length
Buy more, save moreDiscounts applied in cart/checkout.
SAE 100R14 — PTFE

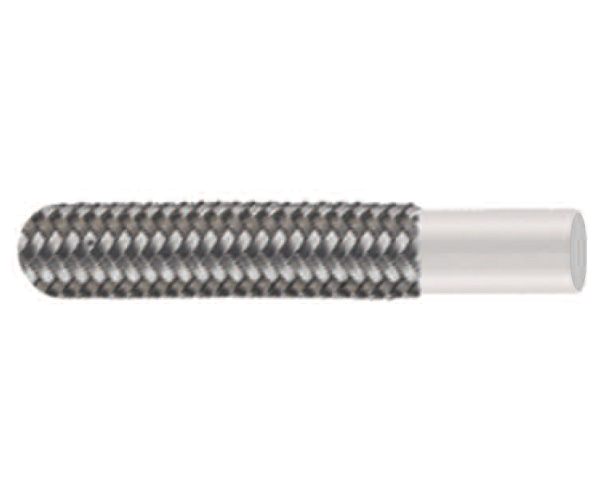

TR14 PTFE Hydraulic Hose
Stainless-braided PTFE hose for fuel, lubricant, steam, hydraulic and compressed gas service, rated to +400°F continuous.
1
What is this hose used for?
- Fuel
- Lubricant
- Steam
- Hydraulic
- Compressed gas
2
What are the key specifications?
SAE Rating
SAE 100R14
Tube
PTFE
Cover
304 stainless braid
Reinforcement
One braid (3/16"–3/4"), two braids (1")
Temperature
-65°F to +400°F (+500°F intermittent)
Size Range
3/16" to 1"
3
What are the main product features?
- PTFE tube — chemically inert and suitable for aggressive fluids other hose liners cannot handle.
- Wide temperature range — -65°F to +400°F continuous, +500°F intermittent.
- 304 stainless steel braid — corrosion resistant external reinforcement.
- Non-aging — PTFE does not harden or degrade with service life the way rubber tubes do.
4
Which sizes are available?
| Part # | Hose ID | Hose OD | Working Pressure | Min. Burst Pressure | Min. Bend Radius |
|---|---|---|---|---|---|
| 3/16" TR14 | 3/16" | 0.312" | 3,000 lbs. | 12,000 lbs. | 2.0" |
| 1/4" TR14 | 1/4" | 0.375" | 3,000 lbs. | 12,000 lbs. | 3.0" |
| 5/16" TR14 | 5/16" | 0.445" | 2,500 lbs. | 10,000 lbs. | 4.0" |
| 3/8" TR14 | 3/8" | 0.503" | 2,250 lbs. | 9,000 lbs. | 4.5" |
| 1/2" TR14 | 1/2" | 0.648" | 1,500 lbs. | 6,000 lbs. | 6.5" |
| 3/4" TR14 | 3/4" | 0.886" | 1,100 lbs. | 4,400 lbs. | 8.2" |
| 1" TR14 | 1" | 1.135" | 900 lbs. | 3,600 lbs. | 10.0" |
Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
2500
Cover Construction:
Specifications and Approvals:
Compatible Series:
