3/16" TR14 by Couplamatic | PTFE Hydraulic Hose | One Stainless Braid | 3/16" ID | 50ft Bulk Length
Couplamatic Systems Inc.
One (3/16"-3/4") or Two (1") Stainless Braids - TR14 PTFE Hydraulic Hose - SAE 100R14
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $141.20 |
| 20–59 | $127.68 |
| 60+ | $112.66 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
3000
Cover Construction:
Specifications and Approvals:
Compatible Series:

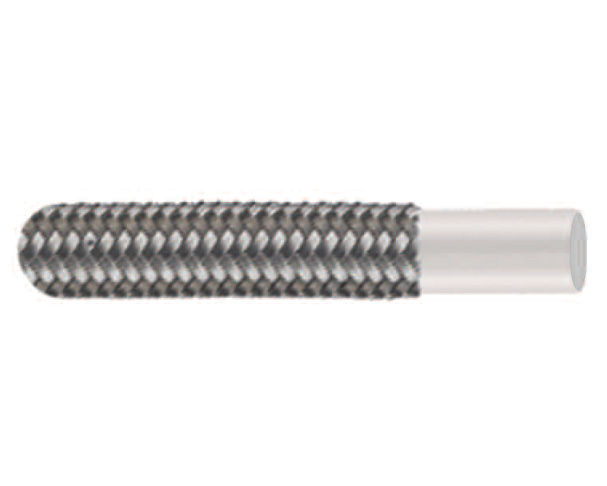

PTFE Hydraulic Hose
TR14® by Couplamatic
Stainless-braided PTFE hose for fuel, lubricant, steam, hydraulic, and compressed gas service. Rated SAE 100R14.
Applications
Fuel, lubricant, steam, hydraulic & compressed gas
SAE Rating
SAE 100R14
Cover
304 stainless braid
Reinforcement
One braid (3/16"–3/4"), two braids (1")
Temperature
-65°F to +400°F (+500°F intermittent)
Hose Catalog
7 sizes| Part # | Hose ID | Hose OD | Working Pressure | Min. Burst Pressure | Min. Bend Radius |
|---|---|---|---|---|---|
| 3/16" TR14 | 3/16" | 0.312" | 3,000 lbs. | 12,000 lbs. | 2.0" |
| 1/4" TR14 | 1/4" | 0.375" | 3,000 lbs. | 12,000 lbs. | 3.0" |
| 5/16" TR14 | 5/16" | 0.445" | 2,500 lbs. | 10,000 lbs. | 4.0" |
| 3/8" TR14 | 3/8" | 0.503" | 2,250 lbs. | 9,000 lbs. | 4.5" |
| 1/2" TR14 | 1/2" | 0.648" | 1,500 lbs. | 6,000 lbs. | 6.5" |
| 3/4" TR14 | 3/4" | 0.886" | 1,100 lbs. | 4,400 lbs. | 8.2" |
| 1" TR14 | 1" | 1.135" | 900 lbs. | 3,600 lbs. | 10.0" |
Note: Working pressure and burst pressure rated at room temperature.
