5/16" H7 by Couplamatic | Braid Reinforced Hydraulic Hose | SAE 100R7 | 5/16" ID | Thermoplastic | Polyester | 250ft
Package Quantity: 250 FT
Buy more, save moreDiscounts applied in cart/checkout.
SAE 100R7 — Thermoplastic

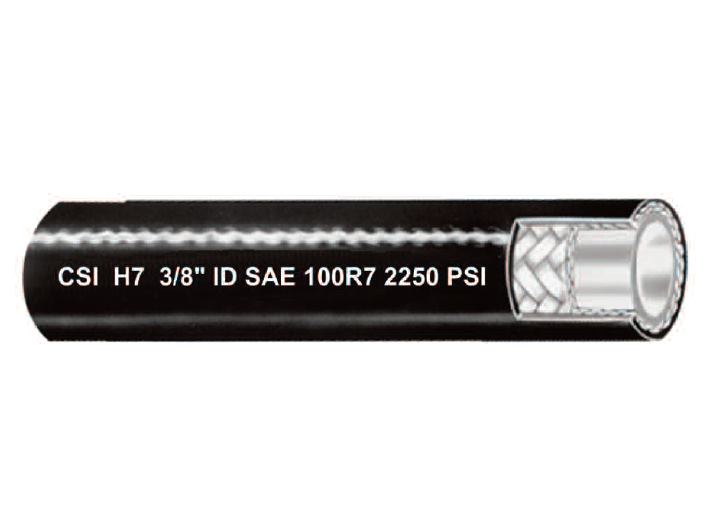

H7 Polyester Braid Thermoplastic Hydraulic Hose
Medium pressure SAE 100R7 thermoplastic hose with a nylon tube and perforated black polyurethane cover — the standard choice for lightweight hydraulic and lubrication lines.
1
What is this hose used for?
- Medium Pressure Hydraulics
- Industrial
- Agricultural
2
What are the key specifications?
SAE Rating
SAE 100R7
Cover
Black Polyurethane, Perforated
Tube
Nylon
Reinforcement
Polyester Braid
Temperature
-40°F to +212°F (-40°C to +100°C)
Size Range
1/8" to 1"
3
What are the main product features?
- Lightweight — substantially lighter than equivalent wire braid hose.
- Nylon tube — smooth bore with low volumetric expansion.
- Polyester braid — medium pressure hydraulic service from 1/8" through 1".
- Perforated cover — vents permeated gases from the hose wall.
- Broad size range — 1/8" through 1" inside diameter.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Reel Footage |
|---|---|---|---|---|---|---|---|
| 1/8" H7 | 1/8" | 0.325" | 3,000 lbs. | 12,000 lbs. | 0.5" | 3 lbs. | 250ft |
| 3/16" H7 | 3/16" | 0.433" | 3,000 lbs. | 12,000 lbs. | 0.75" | 4.9 lbs. | 250ft |
| 1/4" H7 | 1/4" | 0.508" | 2,750 lbs. | 11,000 lbs. | 1.5" | 6 lbs. | 250ft |
| 5/16" H7 | 5/16" | 0.585" | 2,500 lbs. | 10,000 lbs. | 1.75" | 7.5 lbs. | 250ft |
| 3/8" H7 | 3/8" | 0.650" | 2,250 lbs. | 9,000 lbs. | 2" | 10 lbs. | 250ft |
| 1/2" H7 | 1/2" | 0.815" | 2,000 lbs. | 8,000 lbs. | 3" | 15.6 lbs. | 250ft |
| 3/4" H7 | 3/4" | 1.062" | 1,250 lbs. | 5,000 lbs. | 6.5" | 19 lbs. | 100ft |
| 1" H7 | 1" | 1.335" | 1,000 lbs. | 4,000 lbs. | 8" | 27 lbs. | 100ft |
Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
2500
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Compatible Series:
