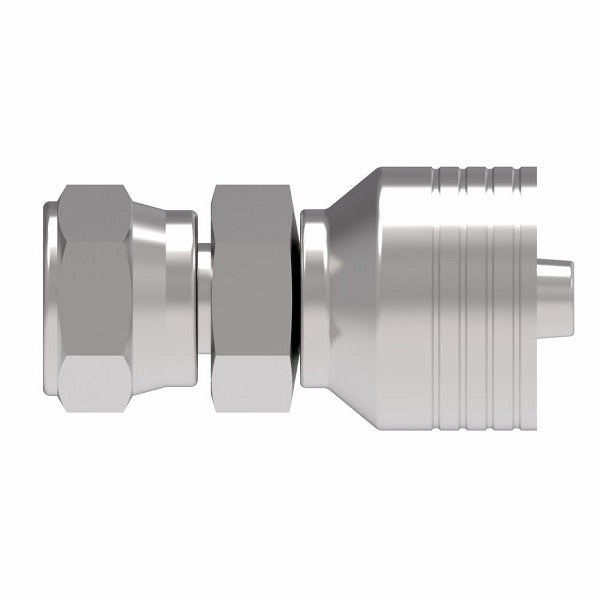

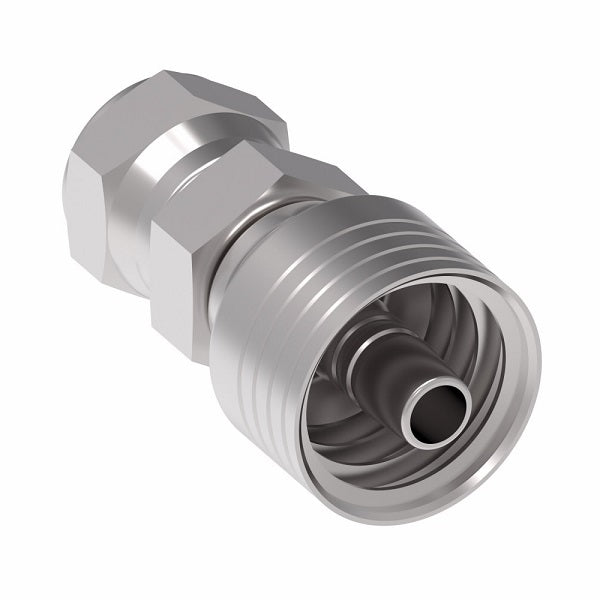

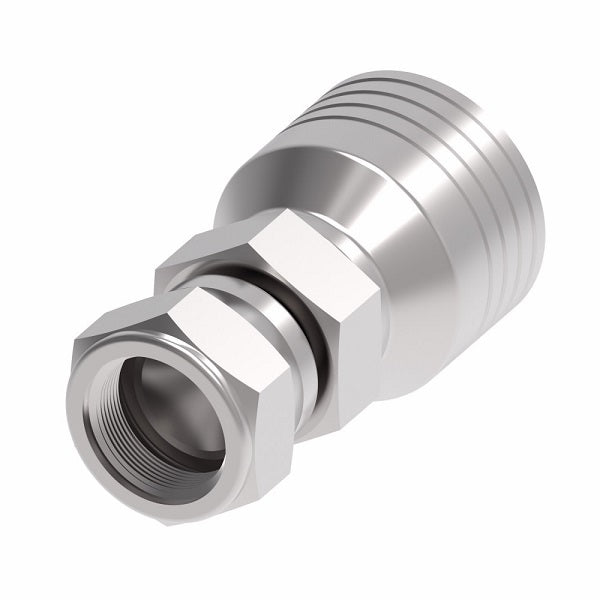

4S6JF6 Aeroquip by Danfoss | 4 Wire 4S JIS Female Swivel (JF) Crimp Fitting | -06 Female JIS Swivel x -06 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
| Note: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Thread | A | D | EØ | Hex 1 |
Hex 2 |
|
| Dash Size | DN | Dash Size | |||||||
| 4S6JF6 | -06 | - | -06 | G 3/8-19 | 2.17" | 1.33" | 0.26" | 0.87" | 0.87" |
| 4S8JF8 | -08 | - | -08 | G 1/2-14 | 2.54" | 1.46" | 0.38" | 1.06" | 1.06" |
| 4S12JF12 | -12 | 19 | -12 | G 3/4" | 2.46" | 1.03" | 0.56" | 1-3/16" | 32mm |
| 4S16JF16 | -16 | 25 | -16 | G 1" | 2.62" | 1.06" | 0.76" | 1-5/8" | 41mm |
| 4S20JF20 | -20 | 31 | -20 | G 1-1/4" | 3.37" | 1.19" | 0.99" | 1-13/16" | 50mm |
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
