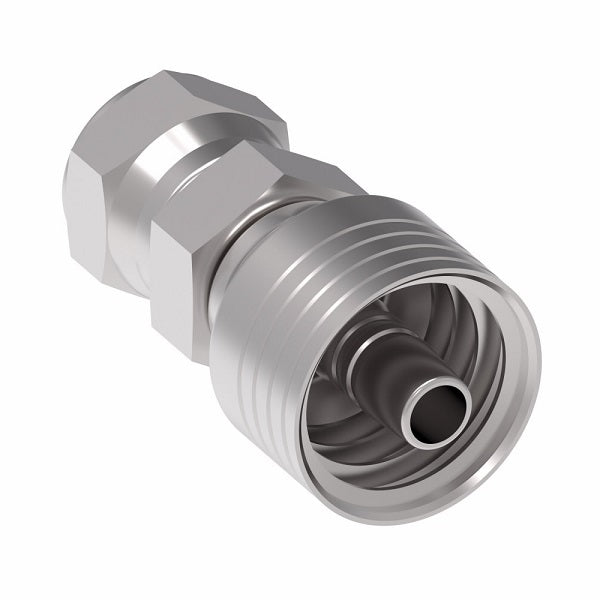

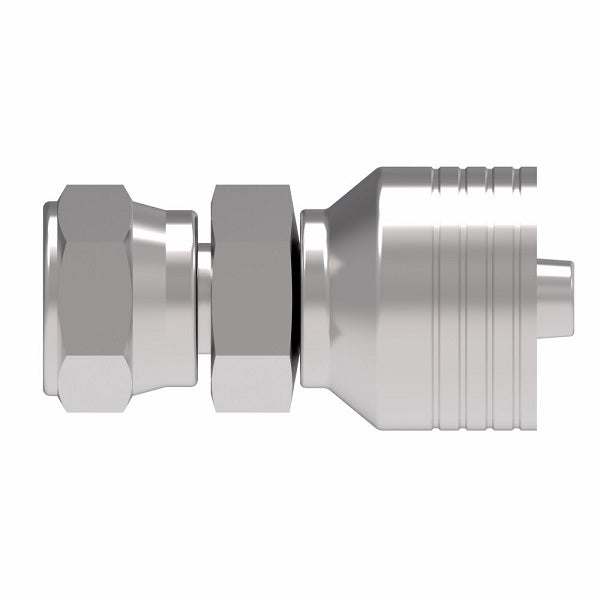

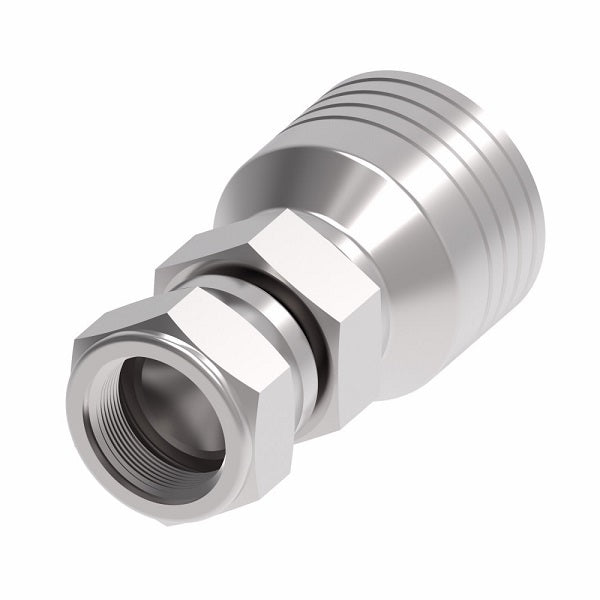

4S8JF8 Aeroquip by Danfoss | 4 Wire 4S JIS Female Swivel (JF) Crimp Fitting | -08 Female JIS Swivel x -08 Hose Barb | Steel
4S8JF8 Aeroquip by Danfoss | 4 Wire 4S JIS Female Swivel (JF) Crimp Fitting | -08 Female JIS Swivel x -08 Hose Barb | Steel
4S8JF8 Aeroquip by Danfoss | 4 Wire 4S JIS Female Swivel (JF) Crimp Fitting | -08 Female JIS Swivel x -08 Hose Barb | Steel

4S8JF8 Aeroquip by Danfoss | 4 Wire 4S JIS Female Swivel (JF) Crimp Fitting | -08 Female JIS Swivel x -08 Hose Barb | Steel

Sale price$64.22

Aeroquip® by Danfoss
4 Wire 4S JIS Female Swivel 30° Flare Seat Crimp Fitting (JF) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
20–39 $60.37
40–79 $54.59
80+ $48.17
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Female JIS
  • 1/2in Hose Barb
Material(s):
  • Steel
Technical Info:
Note:
  • "G" as part of thread size is ISO designation for parellel thread.
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash Hex 1

 Hex 2
Dash Size DN Dash Size
4S6JF6 -06 - -06 G 3/8-19 2.17" 1.33" 0.26" 0.87" 0.87"
4S8JF8 -08 - -08 G 1/2-14 2.54" 1.46" 0.38" 1.06" 1.06"
4S12JF12 -12 19 -12 G 3/4" 2.46" 1.03" 0.56" 1-3/16" 32mm
4S16JF16 -16 25 -16 G 1" 2.62" 1.06" 0.76" 1-5/8" 41mm
4S20JF20 -20 31 -20 G 1-1/4" 3.37" 1.19" 0.99" 1-13/16" 50mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
