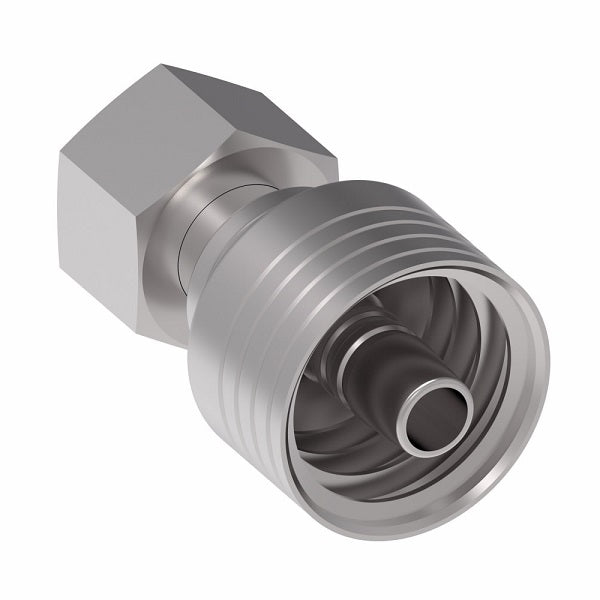

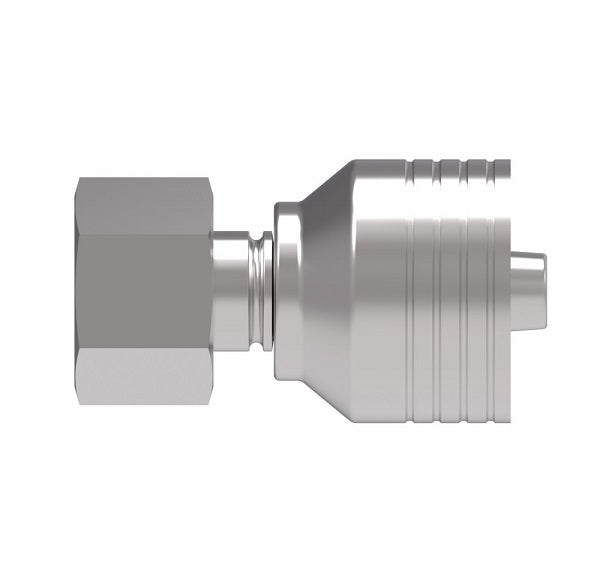

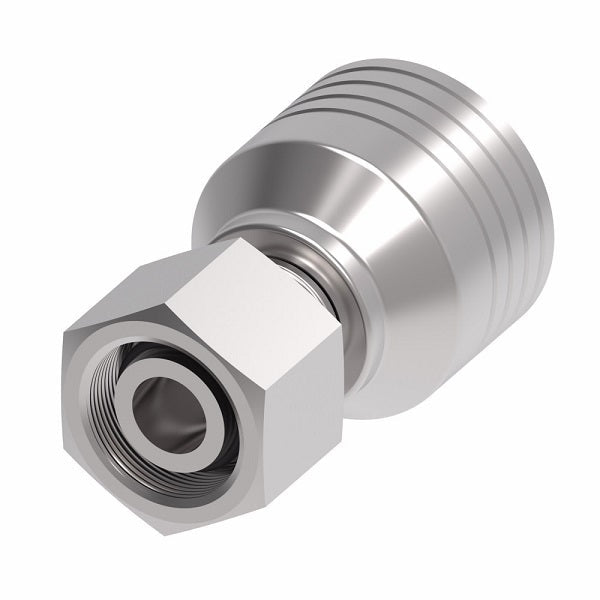

4S12DL8 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Light Duty (DL) Crimp Fitting | L15 Female DKO/DIN x -08 Hose Barb | Steel
4S12DL8 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Light Duty (DL) Crimp Fitting | L15 Female DKO/DIN x -08 Hose Barb | Steel
4S12DL8 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Light Duty (DL) Crimp Fitting | L15 Female DKO/DIN x -08 Hose Barb | Steel

4S12DL8 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Light Duty (DL) Crimp Fitting | L15 Female DKO/DIN x -08 Hose Barb | Steel

Sale price$34.04

Aeroquip® by Danfoss
4 Wire 4S Female DIN 24° Seat Swivel DKO (Light) Crimp Fitting (DL) - Straight

l.Rh DKO (Light)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
20–39 $32.00
40–79 $28.93
80+ $25.53
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • L15 Female DIN
  • 1/2in Hose Barb
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Tube OD Hose Size Thread A D EØ Hex 1
DN Dash Size
4S8DL6 10 - -06 M16 x 1.5 1.99" 0.99" 0.26" 0.75"
4S10DL6 12 - -06 M18 x 1.5 2.01" 1.02" 0.26" 0.87"
4S12DL8 15 - -08 M22 x 1.5 2.30" 1.13" 0.38" 1.06"
4S16DL10 18 - -10 M26 x 1.5 2.33" 1.17" 0.50" 1.26"
4S20DL8 - - -08 M30X2 - - - -
4S20DL12 22 19 -12 M30X2 2.99" 1.56" 0.56" 36mm
4S25DL16 28 25 -16 M36X2 3.14" 1.59" 0.76" 41mm
4S32DL20 35 31 -20 M45X2 3.96" 1.79" 0.99" 50mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
