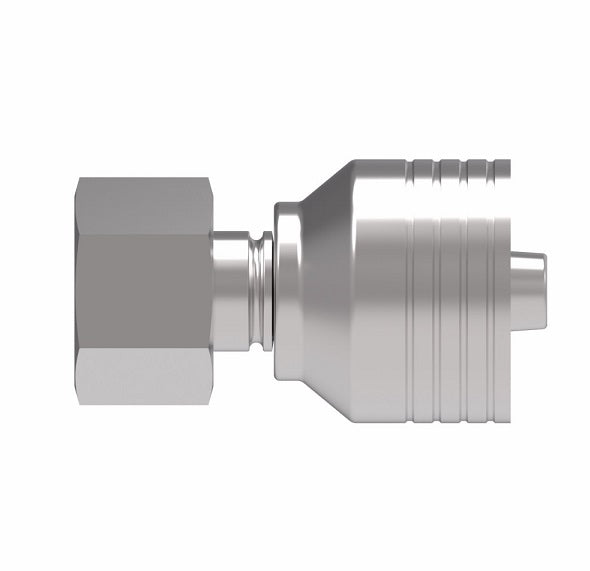

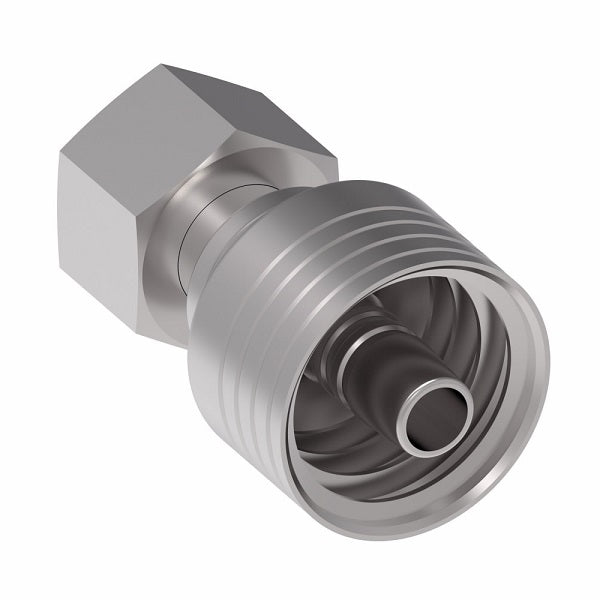

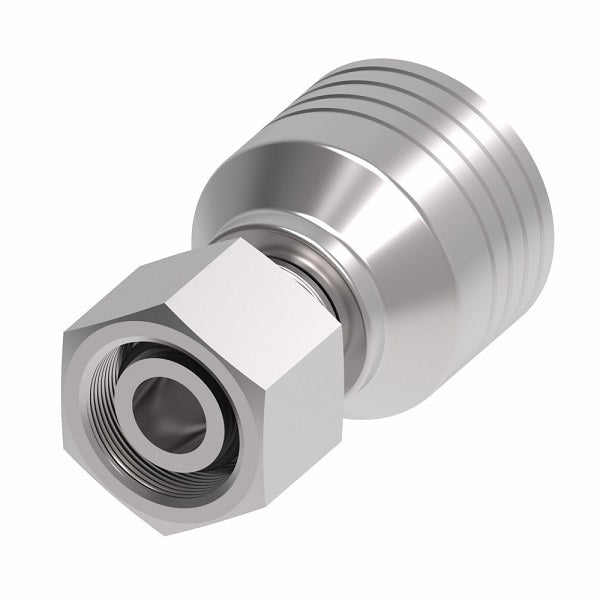

4S16DL10 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Light Duty (DL) Crimp Fitting | L18 Female DKO/DIN x -10 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Tube OD | Hose Size | Thread | A | D | EØ | Hex 1 |
|
| DN | Dash Size | |||||||
| 4S8DL6 | 10 | - | -06 | M16 x 1.5 | 1.99" | 0.99" | 0.26" | 0.75" |
| 4S10DL6 | 12 | - | -06 | M18 x 1.5 | 2.01" | 1.02" | 0.26" | 0.87" |
| 4S12DL8 | 15 | - | -08 | M22 x 1.5 | 2.30" | 1.13" | 0.38" | 1.06" |
| 4S16DL10 | 18 | - | -10 | M26 x 1.5 | 2.33" | 1.17" | 0.50" | 1.26" |
| 4S20DL8 | - | - | -08 | M30X2 | - | - | - | - |
| 4S20DL12 | 22 | 19 | -12 | M30X2 | 2.99" | 1.56" | 0.56" | 36mm |
| 4S25DL16 | 28 | 25 | -16 | M36X2 | 3.14" | 1.59" | 0.76" | 41mm |
| 4S32DL20 | 35 | 31 | -20 | M45X2 | 3.96" | 1.79" | 0.99" | 50mm |
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
