4GC47-16x16 by Couplamatic | Grip Crimp 4GC Series Coupling | 1" Hose ID x 1" Split Flange Size | Code 61 | Straight | Trivalent Zinc Plating
Couplamatic Systems Inc.
Grip Crimp 4GC Series - 100R12 No-Skive Couplings - Code 61 Split Flange - Straight
| Quantity | Price Each |
| 20–49 | $34.52 |
| 50–99 | $32.71 |
| 100+ | $29.07 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|
|

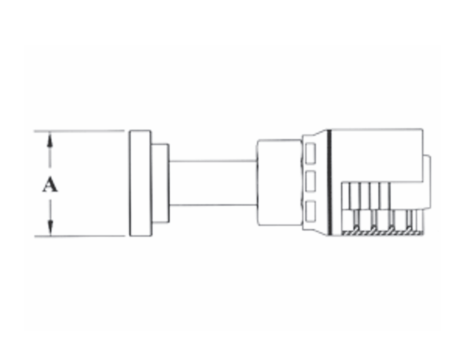

| Part Number | Hose ID | Flange Size | A-Dia Inches |
Cross Reference Part Numbers |
|---|---|---|---|---|
| Parker 71 | ||||
| 4GC47-8x8 | 1/2" | 1/2" | 1.19" | 11571-8-8 |
| 4GC47-8x12 | 1/2" | 3/4" | 1.50" | 11571-12-8 |
| 4GC47-12x12 | 3/4" | 3/4" | 1.50" | 11571-12-12 |
| 4GC47-12x16 | 3/4" | 1" | 1.75" | 11571-16-12 |
| 4GC47-16x16 | 1" | 1" | 1.75" | 11571-16-16 |
| 4GC47-16x20 | 1" | 1-1/4" | 2.00" | 11571-20-16 |
| 4GC47-20x20 | 1-1/4" | 1-1/4" | 2.00" | 11571-20-20 |
| 4GC47-20x24 | 1-1/4" | 1-1/2" | 2.38" | 11571-24-20 |
| 4GC47-24x24 | 1-1/2" | 1-1/2" | 2.38" | 11571-24-24 |
| 4GC47-32x32 | 2" | 2" | 2.81" | 11571-32-32 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
