4GC47-12x12 by Couplamatic | Grip Crimp 4GC Series Coupling | 3/4" Hose ID x 3/4" Split Flange Size | Code 61 | Straight | Trivalent Zinc Plating
Buy more, save moreDiscounts applied in cart/checkout.
4GC Series — 100R12 No-Skive
4GC47 Grip Crimp 4GC Series Coupling — Code 61 Split Flange, Straight
4GC47 is the Code 61 Split Flange, Straight configuration of the Grip Crimp 4GC Series, terminating SAE 100R12 four spiral hose.
1
What are the main product features?
- The 4GC Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
- Check crimp O.D. carefully
- Trivalent Zinc Plating
- No skive required — terminates spiral hose without stripping the cover.
- Four spiral construction — built for SAE 100R12 pressures and impulse cycles.
2
Which sizes are available?

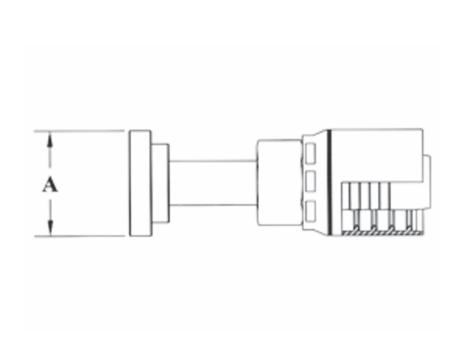

| Part Number | Hose ID | Flange Size | A-Dia Inches |
Cross Reference Part Numbers |
|---|---|---|---|---|
| Parker 71 | ||||
| 4GC47-8x8 | 1/2" | 1/2" | 1.19" | 11571-8-8 |
| 4GC47-8x12 | 1/2" | 3/4" | 1.50" | 11571-12-8 |
| 4GC47-12x12 | 3/4" | 3/4" | 1.50" | 11571-12-12 |
| 4GC47-12x16 | 3/4" | 1" | 1.75" | 11571-16-12 |
| 4GC47-16x16 | 1" | 1" | 1.75" | 11571-16-16 |
| 4GC47-16x20 | 1" | 1-1/4" | 2.00" | 11571-20-16 |
| 4GC47-20x20 | 1-1/4" | 1-1/4" | 2.00" | 11571-20-20 |
| 4GC47-20x24 | 1-1/4" | 1-1/2" | 2.38" | 11571-24-20 |
| 4GC47-24x24 | 1-1/2" | 1-1/2" | 2.38" | 11571-24-24 |
| 4GC47-32x32 | 2" | 2" | 2.81" | 11571-32-32 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
Additional Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
