4GC38-8x16 by Couplamatic | Grip Crimp 4GC Series Coupling | 1/2" Hose ID x M24x1.5 Thread Size DIN Heavy 24° Seat Female Swivel | Straight | Trivalent Zinc Plating

4GC38-8x16 by Couplamatic | Grip Crimp 4GC Series Coupling | 1/2" Hose ID x M24x1.5 Thread Size DIN Heavy 24° Seat Female Swivel | Straight | Trivalent Zinc Plating

Sale price$28.92
Buy more, save moreDiscounts applied in cart/checkout.
4GC Series — 100R12 No-Skive

4GC38 Grip Crimp 4GC Series Coupling — DIN Heavy 24° Seat, Female Swivel, Straight

4GC38 is the DIN Heavy 24° Seat, Female Swivel, Straight configuration of the Grip Crimp 4GC Series, terminating SAE 100R12 four spiral hose.

1

What are the main product features?
  • Includes O-Ring
  • The 4GC Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully
  • Trivalent Zinc Plating
  • No skive required — terminates spiral hose without stripping the cover.
  • Four spiral construction — built for SAE 100R12 pressures and impulse cycles.
2

Which sizes are available?

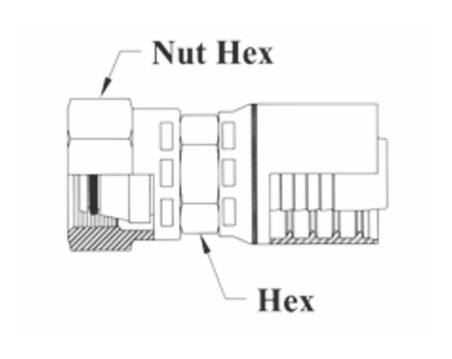

Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Parker 71
4GC38-8x16 1/2" 16mm M24x1.5 7/8" 1-1/8" 1C971-16-8
4GC38-12x25 3/4" 25mm M36x2.0 1-3/8" 1-7/8" 1C971-25-12
4GC38-16x30 1" 30mm M42x2.0 1-11/16" 2" 1C971-30-16

Additional Product Data:

Series:
  • 4GC Series
Shape:

Straight

Ends Configuration:
  • S16 Female DIN
  • 1/2in Hose Barb

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
