4GC38-16x30 by Couplamatic | Grip Crimp 4GC Series Coupling | 1" Hose ID x M42x2.0 Thread Size DIN Heavy 24° Seat Female Swivel | Straight | Trivalent Zinc Plating

4GC38-16x30 by Couplamatic | Grip Crimp 4GC Series Coupling | 1" Hose ID x M42x2.0 Thread Size DIN Heavy 24° Seat Female Swivel | Straight | Trivalent Zinc Plating

Sale price$68.17

Couplamatic Systems Inc.
Grip Crimp 4GC Series - 100R12 No-Skive Couplings - DIN Heavy 24° Seat - Female Swivel
Buy More, Save More!
Quantity Price Each
10–39 $64.08
40–79 $57.94
80+ $51.13
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4GC Series
Shape:

Straight

Ends Configuration:
  • S30 Female DIN
  • 1in Hose Barb
Description:
  • Includes O-Ring
  • The 4GC Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

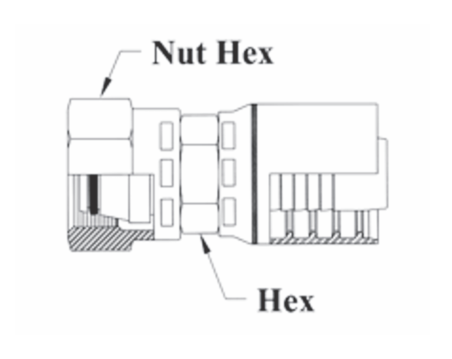

    Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
    Parker 71
    4GC38-8x16 1/2" 16mm M24x1.5 7/8" 1-1/8" 1C971-16-8
    4GC38-12x25 3/4" 25mm M36x2.0 1-3/8" 1-7/8" 1C971-25-12
    4GC38-16x30 1" 30mm M42x2.0 1-11/16" 2" 1C971-30-16

    Couplamatic Systems Inc

    In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
