4999315 by Fenner Drives | Eagle 90 Round Belting | 15mm Diameter | Non-Reinforced | Red | 100ft
Fenner Drives

4999315 by Fenner Drives | Eagle 90 Round Belting | 15mm Diameter | Non-Reinforced | Red | 100ft

Sale price$1,396.29
Fenner Drives - Conveying - Round Belting - 15mm, 16mm, 5/8" Round Cross Sections

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 90 Series
Overview:

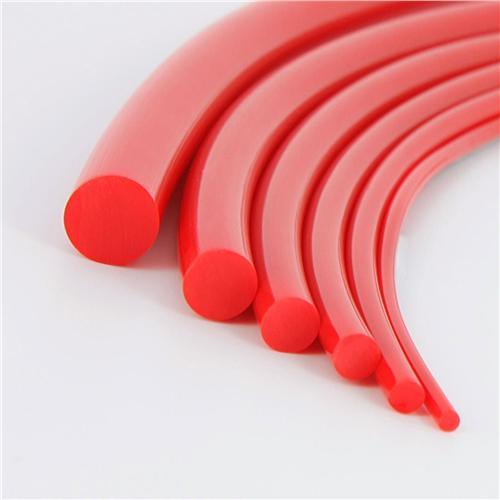

  • Eagle Red 90 Non-Reinforced Round Belting is constructed of solid polyurethane with a 90 Shore A durometer that provides extremely high abrasion resistance. Packaged in 100'/30.5m lengths.
Description:
  • Fenner Drives Eagle Red 90 Non-Reinforced Round Belts offer the hardest durometer and best abrasion resistance of any Fenner Drives Eagle polyurethane belts. The solid 90A durometer gives you the strength and durability your conveying application needs. If you have a heavy load carrying problem-we have a simple solution! Eagle Red 90 Non-Reinforced Round will not disappoint!

    Best Suited For: Medium to heavy duty conveying applications that require the best abrasion resistance you can get in a polyurethane round belt profile.

  • 90 Shore A durometer polyurethane belting
  • Solid polyurethane construction
  • Superior abrasion resistance
  • REACH and RoHS 2002/95/EC Directive compliant


    • Eagle Red 90 Non-Reinforced Round belt is the dependable choice for your toughest material transfer applications. Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Red 90 Non-Reinforced Round Belts are easily welded on-site with a Fenner Drives Butt Welding Kit.


SPECIFICATIONS

Profile Shape: Round Profile Size: 1/2", 1/4", 10mm, 12.5mm, 12mm, 15mm, 2mm, 3/16", 3/8", 3mm, 4mm, 5mm, 6.3mm, 6mm, 7mm, 8mm, 9.5mm, 9/16"
Reinforcement: None Color: Red
Compliancy: REACH, RoHS Durometer: 90A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
L04OP8015M Eagle Opaque 80 --- 15mm 4.13" 105mm 11.6 51.6 19.7 87.7 27.6 122.6 34.7 154.4 0.145 lbs 0.216 kg
L04BL8515 Eagle Blue 85 --- 15mm 4.72" 120mm 10.8 48.1 16.7 74.2 22.2 99 27.4 121.9 0.142 lbs 0.212 kg
L04G8915MS Eagle Green 89 --- 15mm 5.31" 135mm 18 80 29.5 131.4 40.6 180.5 50.7 225.5 0.141 lbs 0.21 kg
4905315 Eagle Green 89 Textured --- 15mm 5.31" 135mm 13.1 58.1 21.5 95.4 29.5 131.1 36.8 163.8 0.141 lbs 0.21 kg
4999315 Eagle Red 90 --- 15mm 5.91" 150mm 59.1 262.9 85.2 378.8 107.2 476.8 125.4 557.9 0.144 lbs 0.214 kg
L04BE9515M Eagle Beige 95 --- 15mm 5.91" 150mm 47.8 212.5 67.7 301.2 84.6 376.2 98.9 440 0.146 lbs 0.217 kg
4941107 Eagle Blue 80 MD 5/8" --- 4.38" 111mm 8.4 37.5 13.1 58.2 17.4 77.6 21.7 96.4 0.149 lbs 0.222 kg
1032020 Eagle Orange 85 5/8" --- 5" 127mm 12.1 53.9 18.7 83.1 24.9 110.8 30.7 136.5 0.16 lbs 0.238 kg
4908030 Eagle Clear 85 5/8" --- 5" 127mm 12.1 53.9 18.7 83.1 24.9 110.8 30.7 136.5 0.16 lbs 0.238 kg
4907030 Eagle Clear 95 5/8" --- 6.25" 159mm 22.7 100.9 33.7 149.8 43.2 192.3 51.4 228.7 0.164 lbs 0.243 kg
4934030 Eagle Clear 85 QC .625 x .273"* --- 5" 127mm 5 22.1 7.7 34.2 10.3 45.9 12.7 56.6 0.129 lbs 0.192 kg
4934020 Eagle Yellow 85 QC .625 x .273"* --- 5" 127mm 5 22.1 7.7 34.2 10.3 45.9 12.7 56.6 0.129 lbs 0.192 kg
4935030 15 per Pack

* QC dimensions are shown O.D x I.D. (O.D. is the outer diameter of the belt. I.D. is the inner diameter of the belt.) Dimensions are for reference only.

Fenner Drives

Fenner Drives is a leading manufacturer of products for power transmission, motion transfer, and conveying applications. We consistently blend reliability, quality, and value across our entire product portfolio, which includes tensioners, pulleys and idlers, and bearings.
