4908030 by Fenner Drives | Eagle 85 Round Belting | 5/8" Diameter | Non-Reinforced | Clear | 100ft
Fenner Drives

4908030 by Fenner Drives | Eagle 85 Round Belting | 5/8" Diameter | Non-Reinforced | Clear | 100ft

Sale price$1,141.71
Fenner Drives - Conveying - Round Belting - 15mm, 16mm, 5/8" Round Cross Sections

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:

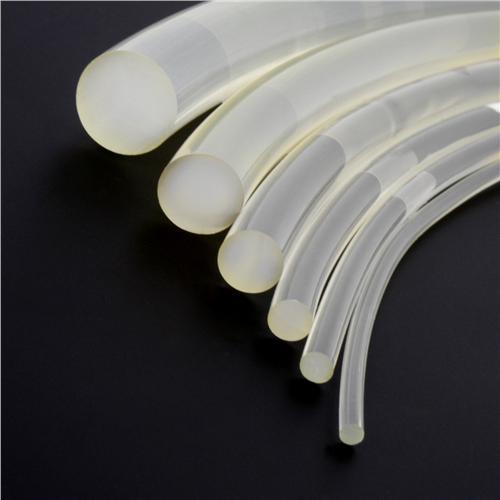

  • Eagle Clear 85 Non-Reinforced Round Belting is constructed of solid polyurethane with an 85 Shore A durometer that provides excellent abrasion resistance, high elasticity, and is also self-tensioning. Packaged in 100'/30.5m lengths.
Description:
  • Eagle Clear 85 Non-Reinforced Round Belts offer a simple and practical option for your conveying needs. Made from a highly elastic, 85 Shore A durometer polyurethane. Due to their highly elastic properties, these belts are installed preloaded and require no take-up or tensioning mechanisms.

    Best Suited For: An all-purpose, highly versatile non-reinforced polyurethane belt for virtually any light to medium duty conveying application, requiring a round profile.

  • Independently tested and verified to meet FDA standards for direct food contact
  • Solid polyurethane construction
  • 80 Shore A durometer polyurethane belting
  • High elasticity; no take-ups required
  • REACH and RoHS 2002/95/EC Directive compliant


    • The proven workhorses! Eagle Clear 85 Non-Reinforced Round belts are the proven workhorses for material transfer and light-duty power transmission applications.

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Clear Non-Reinforced Round belts are easily welded endless in the field with a Fenner Drives Butt Welding Kit.

SPECIFICATIONS

Profile Shape: Round Profile Size: 1/2", 1/4", 1/8", 2mm, 3/16", 3/32", 3/4", 3/8", 3mm, 4mm, 5/16", 5/8", 5mm, 6mm, 7mm, 8mm, 9/16"
Reinforcement: None Color: Clear
Compliancy: FDA, REACH, RoHS Durometer: 85A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
L04OP8015M Eagle Opaque 80 --- 15mm 4.13" 105mm 11.6 51.6 19.7 87.7 27.6 122.6 34.7 154.4 0.145 lbs 0.216 kg
L04BL8515 Eagle Blue 85 --- 15mm 4.72" 120mm 10.8 48.1 16.7 74.2 22.2 99 27.4 121.9 0.142 lbs 0.212 kg
L04G8915MS Eagle Green 89 --- 15mm 5.31" 135mm 18 80 29.5 131.4 40.6 180.5 50.7 225.5 0.141 lbs 0.21 kg
4905315 Eagle Green 89 Textured --- 15mm 5.31" 135mm 13.1 58.1 21.5 95.4 29.5 131.1 36.8 163.8 0.141 lbs 0.21 kg
4999315 Eagle Red 90 --- 15mm 5.91" 150mm 59.1 262.9 85.2 378.8 107.2 476.8 125.4 557.9 0.144 lbs 0.214 kg
L04BE9515M Eagle Beige 95 --- 15mm 5.91" 150mm 47.8 212.5 67.7 301.2 84.6 376.2 98.9 440 0.146 lbs 0.217 kg
4941107 Eagle Blue 80 MD 5/8" --- 4.38" 111mm 8.4 37.5 13.1 58.2 17.4 77.6 21.7 96.4 0.149 lbs 0.222 kg
1032020 Eagle Orange 85 5/8" --- 5" 127mm 12.1 53.9 18.7 83.1 24.9 110.8 30.7 136.5 0.16 lbs 0.238 kg
4908030 Eagle Clear 85 5/8" --- 5" 127mm 12.1 53.9 18.7 83.1 24.9 110.8 30.7 136.5 0.16 lbs 0.238 kg
4907030 Eagle Clear 95 5/8" --- 6.25" 159mm 22.7 100.9 33.7 149.8 43.2 192.3 51.4 228.7 0.164 lbs 0.243 kg
4934030 Eagle Clear 85 QC .625 x .273"* --- 5" 127mm 5 22.1 7.7 34.2 10.3 45.9 12.7 56.6 0.129 lbs 0.192 kg
4934020 Eagle Yellow 85 QC .625 x .273"* --- 5" 127mm 5 22.1 7.7 34.2 10.3 45.9 12.7 56.6 0.129 lbs 0.192 kg
4935030 15 per Pack

* QC dimensions are shown O.D x I.D. (O.D. is the outer diameter of the belt. I.D. is the inner diameter of the belt.) Dimensions are for reference only.
